group: G6340
The VSH XPress G6340 is a brass three piece straight union connector with 2 press ends, applicable for Gas. The yellow O-ring and marking on the fitting ensures a clear identification of the system. VSH XPress provides a complete piping system suitable for every conceivable application.
natural gas
hydrogen (H2)
residential
commercial building
industry
ARGB-KVBG
BSI Kitemark
DVGW Gas
GASTEC
Gastec-H2-ready
ÖVGW Gas
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
35x35x60 mm
weight
0.19 kg
packaging
bag (1 pce)
gtin
05022050053459
item number
size
22
dimensions
40x40x65 mm
weight
0.27 kg
packaging
bag (1 pce)
gtin
05022050053541
item number
size
28
dimensions
50x50x75 mm
weight
0.38 kg
packaging
bag (1 pce)
gtin
05022050053640
item number
size
35
dimensions
60x60x83 mm
weight
0.58 kg
packaging
bag (1 pce)
gtin
05022050053756

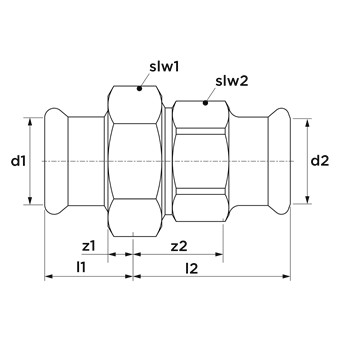

item number
size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
item number
4803667size
15
d1
15.0
DN1
DN12
l1
25
z1
5
slw1
34
d2
15.0
DN2
DN12
l2
36
z2
16
slw2
28
item number
4803689size
22
d1
22.0
DN1
DN20
l1
29
z1
8
slw1
41
d2
22.0
DN2
DN20
l2
38
z2
17
slw2
36
item number
4803691size
28
d1
28.0
DN1
DN25
l1
34
z1
11
slw1
48
d2
28.0
DN2
DN25
l2
41
z2
18
slw2
41
item number
4803700size
35
d1
35.0
DN1
DN32
l1
36
z1
10
slw1
58
d2
35.0
DN2
DN32
l2
46
z2
20
slw2
50
color
copper
materials
bronze (EN CC499K)
finishing
none
shape
straight
connection type
press (M)
sealing
NBR (Nitrile)
product group
fittings (unions)
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
XPress Copper Gas
type
G6340
UNSPS
40174912
SCIP
966cd6bc-74ae-47a8-951b-016935a13ff8
min. medium temperature
-20 °C
max medium temperature
70 °C
peak medium temperature
70 °C
label
value
label
ETIM class
label
Material connection 1
value
Bronze
label
Material quality connection 1
value
CuSn5Zn5Pb2
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Bronze
label
Material quality connection 2
value
CuSn5Zn5Pb2
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
3-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
M
label
Connection 2
value
Press sleeve
label
Contour code connection 2
value
M
label
Main colour fitting
value
Copper
label
Material sealing
value
NBR (nitrile rubber)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-20°C - 70°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 158°F
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
Yes
label
Capped
value
No
label
With connection indicator
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
Yes
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
Yes
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
Yes
label
Type approval according to BBR/EKS
value
No
item number
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
item number
4803667carbon footprint (A1-A3) cradle-to-gate
0.56kgCO2e
carbon footprint (A-C) embodied carbon
0.65kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.34kgCO2e
data source
EPD
item number
4803689carbon footprint (A1-A3) cradle-to-gate
0.81kgCO2e
carbon footprint (A-C) embodied carbon
0.93kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.48kgCO2e
data source
EPD
item number
4803691carbon footprint (A1-A3) cradle-to-gate
1.12kgCO2e
carbon footprint (A-C) embodied carbon
1.29kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.67kgCO2e
data source
EPD
item number
4803700carbon footprint (A1-A3) cradle-to-gate
2.12kgCO2e
carbon footprint (A-C) embodied carbon
2.4kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.51kgCO2e
data source
EPD
