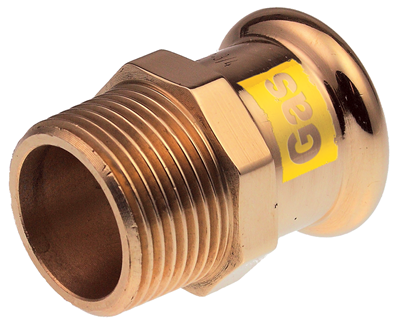

VSH XPress Copper Gas straight connector (press x male thread)

group: G6243G

The VSH XPress G6243G is a brass straight connector with a press and male thread end, applicable for Gas. The yellow O-ring and clear marking on the fitting ensures a clear identification of the system. VSH XPress provides a complete piping system suitable for every conceivable application.

  • safer installation due to no naked flames or heat required
  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

natural gas

natural gas

hydrogen (H2)

hydrogen (H2)

segments

residential

residential

commercial building

commercial building

industry

industry

approvals

ARGB-KVBG

ARGB-KVBG

BSI Kitemark

BSI Kitemark

DVGW Gas

DVGW Gas

GASTEC

GASTEC

Gastec-H2-ready

Gastec-H2-ready

ÖVGW Gas

ÖVGW Gas

item number

size

dimensions

weight

packaging

gtin

item number

4803414

size

15xR1/2"

dimensions

23x23x35 mm

weight

0.05 kg

packaging

bag (5 pce)

gtin

05022050049698

item number

4803425

size

15xR3/4"

dimensions

20x25x40 mm

weight

0.06 kg

packaging

bag (5 pce)

gtin

05022050050526

item number

4803436

size

18xR1/2"

dimensions

25x25x38 mm

weight

0.05 kg

packaging

bag (5 pce)

gtin

05022050207401

item number

4803447

size

18xR3/4"

dimensions

25x38x38 mm

weight

0.08 kg

packaging

bag (5 pce)

gtin

05022050207487

item number

4803458

size

22xR1/2"

dimensions

30x30x40 mm

weight

0.08 kg

packaging

bag (5 pce)

gtin

05022050050779

item number

4803469

size

22xR3/4"

dimensions

30x30x40 mm

weight

0.08 kg

packaging

bag (5 pce)

gtin

05022050050946

item number

4803471

size

22xR1"

dimensions

33x33x45 mm

weight

0.1 kg

packaging

bag (5 pce)

gtin

05022050051103

item number

4803480

size

28xR3/4"

dimensions

35x35x40 mm

weight

0.09 kg

packaging

bag (5 pce)

gtin

05022050051592

item number

4803491

size

28xR1"

dimensions

38x38x45 mm

weight

0.12 kg

packaging

bag (5 pce)

gtin

05022050051264

item number

4803502

size

28xR1 1/4"

dimensions

38x43x50 mm

weight

0.15 kg

packaging

bag (5 pce)

gtin

05022050051431

item number

4803513

size

35xR1"

dimensions

43x43x48 mm

weight

0.16 kg

packaging

bag (1 pce)

gtin

05022050051684

item number

4803524

size

35xR1 1/4"

dimensions

45x45x50 mm

weight

0.15 kg

packaging

bag (1 pce)

gtin

05022050051769

item number

4803535

size

42xR1 1/4"

dimensions

55x55x55 mm

weight

0.27 kg

packaging

bag (1 pce)

gtin

05022050051929

item number

4803546

size

42xR1 1/2"

dimensions

53x53x58 mm

weight

0.26 kg

packaging

bag (1 pce)

gtin

05022050051844

item number

4803557

size

54xR2"

dimensions

60x65x65 mm

weight

0.31 kg

packaging

bag (1 pce)

gtin

05022050052001

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

slw2

item number

4803414

size

15xR1/2"

d1

15.0

DN1

DN12

l1

22

z1

2

d2

21.3

DN2

1/2" (DN15)

l2

15

z2

17

slw2

21

item number

4803425

size

15xR3/4"

d1

15.0

DN1

DN12

l1

23

z1

3

d2

26.9

DN2

3/4" (DN20)

l2

16

z2

19

slw2

25

item number

4803436

size

18xR1/2"

d1

18.0

DN1

DN15

l1

22

z1

2

d2

21.3

DN2

1/2" (DN15)

l2

15

z2

17

slw2

25

item number

4803447

size

18xR3/4"

d1

18.0

DN1

DN15

l1

23

z1

3

d2

26.9

DN2

3/4" (DN20)

l2

16

z2

19

slw2

25

item number

4803458

size

22xR1/2"

d1

22.0

DN1

DN20

l1

26

z1

5

d2

21.3

DN2

1/2" (DN15)

l2

15

z2

17

slw2

30

item number

4803469

size

22xR3/4"

d1

22.0

DN1

DN20

l1

26

z1

5

d2

26.9

DN2

3/4" (DN20)

l2

16

z2

19

slw2

30

item number

4803471

size

22xR1"

d1

22.0

DN1

DN20

l1

26

z1

5

d2

33.7

DN2

1" (DN25)

l2

18

z2

21

slw2

32

item number

4803480

size

28xR3/4"

d1

28.0

DN1

DN25

l1

27

z1

4

d2

26.9

DN2

3/4" (DN20)

l2

16

z2

20

slw2

36

item number

4803491

size

28xR1"

d1

28.0

DN1

DN25

l1

27

z1

4

d2

33.7

DN2

1" (DN25)

l2

18

z2

10

slw2

36

item number

4803502

size

28xR1 1/4"

d1

28.0

DN1

DN25

l1

27

z1

4

d2

42.4

DN2

1 1/4" (DN32)

l2

21

z2

13

slw2

40

item number

4803513

size

35xR1"

d1

35.0

DN1

DN32

l1

30

z1

4

d2

33.7

DN2

1" (DN25)

l2

18

z2

22

slw2

41

item number

4803524

size

35xR1 1/4"

d1

35.0

DN1

DN32

l1

29

z1

3

d2

42.4

DN2

1 1/4" (DN32)

l2

21

z2

27

slw2

41

item number

4803535

size

42xR1 1/4"

d1

42.0

DN1

DN40

l1

37

z1

7

d2

42.4

DN2

1 1/4" (DN32)

l2

21

z2

28

slw2

51

item number

4803546

size

42xR1 1/2"

d1

42.0

DN1

DN40

l1

37

z1

7

d2

48.3

DN2

1 1/2" (DN40)

l2

21

z2

28

slw2

51

item number

4803557

size

54xR2"

d1

54.0

DN1

DN50

l1

54

z1

4

d2

60.3

DN2

2" (DN50)

l2

24

z2

28

slw2

57

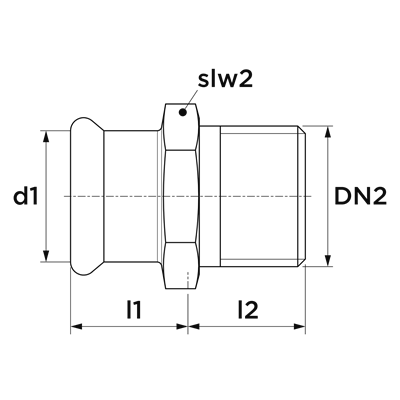

technical drawing for product

characteristics

color

copper

materials

bronze (EN CC499K)

finishing

none

shape

straight, reducer

connection type

press (M), R - male thread gas conical (BSPT)

sealing

NBR (Nitrile)

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

XPress Copper Gas

type

G6243G

UNSPS

40172521

SCIP

966cd6bc-74ae-47a8-951b-016935a13ff8

technical

min. medium temperature

-20 °C

max medium temperature

70 °C

peak medium temperature

70 °C

image for G6243G

image | png

G6243G

image for Diagram

diagram | png

Diagram

installation- & maintenance document | pdf

VSH XPress Copper gas installation instructions

certifications | pdf

EPD-VSH-XPress-Copper-Gas_15-28

certifications | pdf

EPD-VSH-XPress-Copper-Gas_35-54

link to sheet | pdf

MSDS_VSH_XPress_Copper

certifications | pdf

Reach declaration

certifications | pdf

VSH XPress Copper BSI Kitemark

certifications | pdf

VSH XPress Copper Gas Gastec H2

certifications | pdf

VSH XPress Copper Gas ÖVGW

certifications | pdf

VSH XPress Koper Gas ARGB-KVBG

certifications | pdf

XPress Copper BSI

certifications | pdf

XPress Copper DVGW Gas

certifications | pdf

XPress Copper KIWA GASTEC

certifications | pdf

VSH XPress Kupfer Gas DVGW
