VSH Super Gas Belgium angle adapter 90° (2 x compression)

group: G1210

The VSH Super G1210 is a 90° angle adapter with two compression ends. This is a special Gas fitting, designed for Belgium only. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.

  • special Gas fitting for the Belgium market
  • simple installation with standard tools
  • quick connection technology allowing reassembly
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

natural gas

natural gas

hydrogen (H2)

hydrogen (H2)

segments

residential

residential

commercial building

commercial building

industry

industry

approvals

ARGB-KVBG

ARGB-KVBG

GASTEC

GASTEC

Gastec-H2-ready

Gastec-H2-ready

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

slw0

item number

0879406

size

12

d1

12.0

DN1

DN10

l1

37

z1

10

slw1

21

d2

12.0

DN2

DN10

l2

37

z2

10

slw2

21

slw0

14

item number

0879417

size

15

d1

15.0

DN1

DN12

l1

42

z1

11

slw1

24

d2

15.0

DN2

DN12

l2

42

z2

11

slw2

24

slw0

17

item number

0876667

size

18

d1

18.0

DN1

DN15

l1

38

z1

13

slw1

27

d2

18.0

DN2

DN15

l2

38

z2

13

slw2

27

slw0

22

item number

0879428

size

22

d1

22.0

DN1

DN20

l1

53

z1

15

slw1

32

d2

22.0

DN2

DN20

l2

53

z2

15

slw2

32

slw0

24

item number

0879439

size

28

d1

28.0

DN1

DN25

l1

60

z1

18

slw1

39

d2

28.0

DN2

DN25

l2

60

z2

18

slw2

39

slw0

30

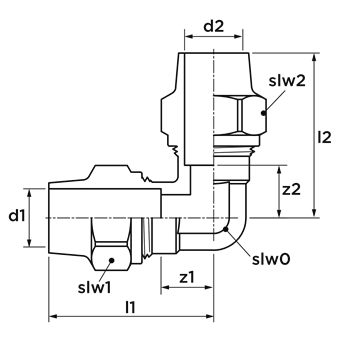

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

Elbow (90º)

connection type

compression

sealing

Brass

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Super Gas Belgium

type

G1210

SCIP

1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d

technical

min. medium temperature

-20 °C

max medium temperature

60 °C

image for G1210

image | png

G1210

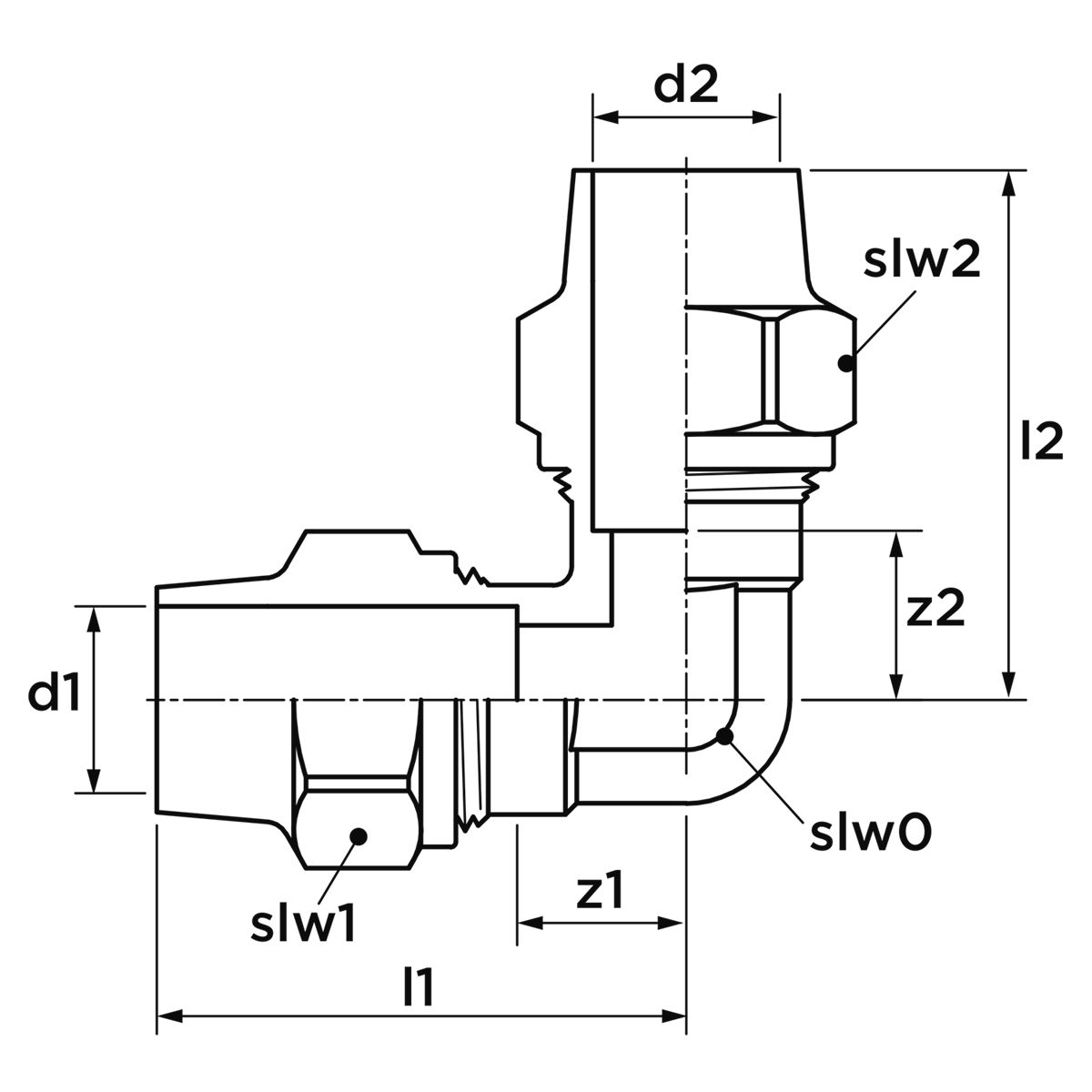

image for Diagram

diagram | png

Diagram

certifications | pdf

EPD VSH Super Brass

link to sheet | pdf

MSDS_VSH_Super

certifications | pdf

VSH Super Gas 12-28mm ARGB-KVBG

certifications | pdf

VSH Super Gas GASTEC QA 10-54mm

installation- & maintenance document | pdf

VSH Super Gas instructions

certifications | pdf

VSH Super Gastec H2

installation- & maintenance document | pdf

VSH_Super_Knel_instructie_NL

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Compression ring

label

Connection 2

value

Compression ring

label

Main colour fitting

value

Brass

label

Material sealing

value

Brass

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-20°C - 60°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 140°F

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

KOMO certified

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

0879406

carbon footprint (A1-A3) cradle-to-gate

0.52kgCO2e

carbon footprint (A-C) embodied carbon

0.39kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.35kgCO2e

data source

EPD

item number

0879417

carbon footprint (A1-A3) cradle-to-gate

0.72kgCO2e

carbon footprint (A-C) embodied carbon

0.53kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.48kgCO2e

data source

EPD

item number

0876667

carbon footprint (A1-A3) cradle-to-gate

1kgCO2e

carbon footprint (A-C) embodied carbon

0.74kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.67kgCO2e

data source

EPD

item number

0879428

carbon footprint (A1-A3) cradle-to-gate

1.39kgCO2e

carbon footprint (A-C) embodied carbon

1.03kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.94kgCO2e

data source

EPD

item number

0879439

carbon footprint (A1-A3) cradle-to-gate

2.17kgCO2e

carbon footprint (A-C) embodied carbon

1.61kgCO2e

carbon footprint (A-D) cradle-to-cradle

1.46kgCO2e

data source

EPD
