no longer available
item: 3206500
heating
commercial building
no approvals available
color
silver
materials
brass
finishing
nickel-plated
shape
Perpendicular
connection type
eurocone, euroconus, Eurocone
product group
radiator valves (standard H)
ETIM class
EC010077 Bottom H-block
HS code
84818039
brand
Simplex
series
connection block
type
H3794
item

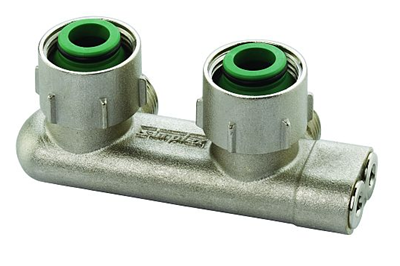

Simplex H-lower block input/output crossed, angled MF G3/4x3/4 EK Ni
item number with gtin
3206500 (08711985115871)
product number with gtin
F10079VSH (08711985116120)
manufacturer
Simplex
item group
H3794 - Simplex H-lower block input/output crossed
size
3/4" EK angled Ni
weight
0.41 kg
dimensions
50x95x45 mm
packaging
bag (5 pce)
max medium temperature
110 °C
label
value
label
ETIM class
value
label
Material
value
Brass
label
Size of radiator connection
value
3/4 inch internal thread
label
Size of pipe connection
value
3/4 inch Euroconus
label
Suitable for two pipe system
value
Yes
label
Suitable for single pipe system
value
No
label
Surface protection
value
Nickel-plated
label
Thermostatically prepared
value
No
label
Centre distance, supply/return
value
50mm
label
Centre distance, supply/return (imperial)
value
1.97"
label
Length
value
50mm
