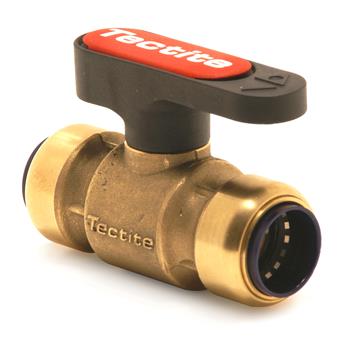

VSH Tectite ball valve (2 x push)

group: TX300

The VSH Tectite TX300 is a ball valve with 2 push connections. VSH Tectite offers a high-quality range of push-fit fittings. By using VSH Tectite you are assured of a professional and reliable installation.

  • demountable
  • perfect mounting in small and hard-to-reach spaces
  • Quick installation without the use of tools
  • provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

non-potable water

non-potable water

segments

commercial building

commercial building

industry

industry

approvals

UK water regulation 4

UK water regulation 4

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

M

H

h1

Y

V

U

D1

a

item number

66001

size

15 (DN15)

d1

15.0

DN1

DN12

l1

36

z1

14

d2

15.0

DN2

DN12

l2

36

z2

14

M

53

H

38

h1

0

Y

20

V

18

U

21

D1

27

a

90

item number

66004

size

22 (DN20)

d1

22.0

DN1

DN20

l1

44

z1

16

d2

22.0

DN2

DN15

l2

44

z2

16

M

53

H

47

h1

0

Y

24

V

23

U

23

D1

32

a

90

item number

size

V

U

D1

a

15 (DN15)

18

21

27

90

22 (DN20)

23

23

32

90

technical drawing for product

characteristics

color

brass

materials

brass (CW511L (lead-free), CW625N (DZR))

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

push

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

VSH

series

Tectite Ball Valve

type

TX300

UNSPS

40141607

label

value

label

ETIM class

label

Housing material

value

Brass

label

Surface protection housing

value

None

label

Material ball seal

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Connection 1

value

Insert (push-fitting)

label

With coupling connection 1

value

No

label

Connection 2

value

Insert (push-fitting)

label

With coupling connection 2

value

No

label

Sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

10°C - 95°C

label

Medium temperature (continuous) (imperial)

value

50°F - 203°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

T-handle

label

Housing construction

value

1-part

label

Full bore

value

Yes

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Type approval according to BBR/EKS

value

No
