group: TS21

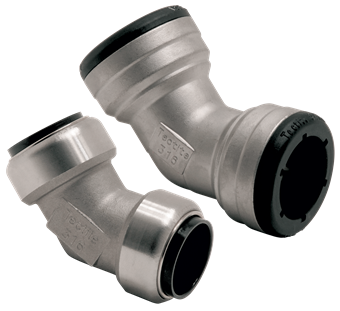

The VSH Tectite 316 TS21 is a 45° obtuse elbow with two push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
potable water
heating
cooling
commercial building
industry
BSI Kitemark
CSN
DVGW Wasser
KIWA
UK water regulation 4
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
64x26x45 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
05022050260444
item number
size
18
dimensions
65x29x47 mm
weight
0.07 kg
packaging
bag (5 pce)
gtin
05022050260475
item number
size
22
dimensions
79x34x57 mm
weight
0.11 kg
packaging
bag (5 pce)
gtin
05022050260505
item number
size
28
dimensions
99x42x70 mm
weight
0.19 kg
packaging
bag (5 pce)
gtin
05022050260536
item number
size
35
dimensions
136x60x99 mm
weight
0.42 kg
packaging
bag (1 pce)
gtin
05022050260550
item number
size
42
dimensions
153x71x114 mm
weight
0.65 kg
packaging
bag (1 pce)
gtin
05022050260574
item number
size
54
dimensions
173x83x130 mm
weight
0.88 kg
packaging
bag (1 pce)
gtin
05022050260598
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
angle
color
silver
materials
stainless steel (Stainless steel 316L (1.4404))
finishing
none
shape
Elbow (45º)
connection type
push
sealing
EPDM
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
73072980
brand
VSH
series
Tectite 316
type
TS21
UNSPS
40172807
max operating pressure liquid
value depends on the item view items
min. medium temperature
-24 °C
max medium temperature
114 °C
peak medium temperature
114 °C
label
value
label
ETIM class
label
Material connection 1
value
Stainless steel
label
Material quality connection 1
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Stainless steel
label
Material quality connection 2
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
45°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Connection 1
value
Insert (push-fitting)
label
Connection 2
value
Insert (push-fitting)
label
Main colour fitting
value
Grey
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-24°C - 114°C
label
Medium temperature (continuous) (imperial)
value
-11.2°F - 237.2°F
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
item number
carbon footprint (A-C) embodied carbon
data source
4753201
4753199
4753210
