VSH SudoPress Stainless flange adapter PN10/16 (press x flange)

VSH SudoPress Stainless flange adapter PN10/16 (press x flange)

SP6500V

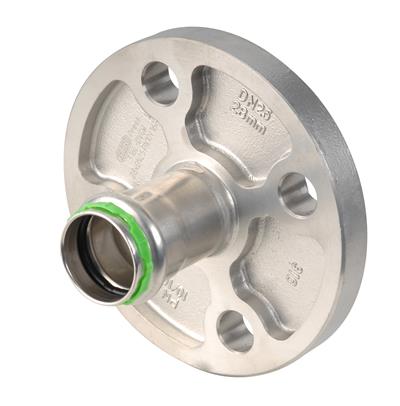

The VSH SudoPress SP6500V is a PN10/16 flange adapter with a press end. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.

  • double safety through Visu-Control® and Leak Before Pressed function
  • provided with all relevant approvals
  • clear identification on fitting of material and dimension

applications

potable water heating cooling compressed air solar energy vacuum

solutions

building installations industry

approvals

DVGW Wasser KIWA ÖVGW Wasser RISE SPF SVGW Wasser ÜA VA (ETA)
item number size weight dimensions packaging gtin
6551677 15xDN15 PN16 0.49 kg 59x95x95 mm bag (1 pce) 03430650367937
6551688 18xDN15 PN16 0.51 kg 60x95x95 mm bag (1 pce) 03430650367944
6551699 22xDN20 PN16 0.69 kg 63x105x105 mm bag (1 pce) 03430650367951
6551701 28xDN25 PN16 0.89 kg 69x115x115 mm bag (1 pce) 03430650367968
6551710 35xDN32 PN16 1.33 kg 71x140x140 mm bag (1 pce) 03430650367975
6551721 42xDN40 PN16 1.62 kg 85x150x150 mm bag (1 pce) 03430650367982
6551732 54xDN50 PN16 1.95 kg 95x165x165 mm bag (1 pce) 03430650367999
item number size d1 DN1 l1 z1 DN2 l2 n2 k2 d2-2 D2
6551677 15xDN15 PN16 15.0 DN12 46 24 DN15 13 4 65 14 95
6551688 18xDN15 PN16 18.0 DN15 47 25 DN15 13 4 65 14 95
6551699 22xDN20 PN16 22.0 DN20 49 26 DN20 14 4 75 14 105
6551701 28xDN25 PN16 28.0 DN25 53 29 DN25 16 4 85 14 115
6551710 35xDN32 PN16 35.0 DN32 54 29 DN32 17 4 100 18 140
6551721 42xDN40 PN16 42.0 DN40 67 31 DN40 18 4 110 18 150
6551732 54xDN50 PN16 54.0 DN50 77 36 DN50 18 4 125 18 165

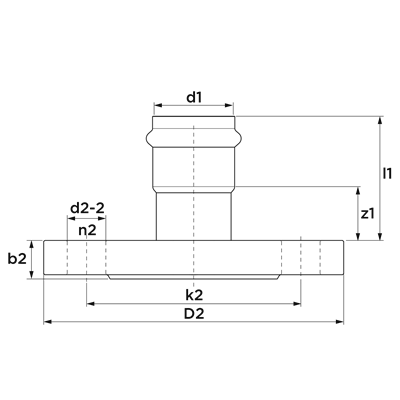

see above for the diagram related to these dimensions
color silver
materials stainless steel (Stainless steel 316L (1.4404))
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape straight
connection type press (V), flange
pressure rating (PN) PN 16
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 73072910
country of origin Netherlands
brand VSH
series SudoPress Stainless
type SP6500V
UNSPS 40173406
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Stainless steel
Material quality connection 1 Stainless steel 316 L (1.4404)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Stainless steel
Material quality connection 2 Stainless steel 316 L (1.4404)
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Straight
Model 1-part
Reducing No
Eccentric No
System-specific Yes
Connection 1 Press sleeve
Contour code connection 1 V
Connection 2 Flange
Main colour fitting Grey
Flange standard DIN
Flange compression class PN 16
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud Yes
High tensile strength Yes
Medium temperature (continuous) -20°C - 110°C
Medium temperature (continuous) (imperial) -4°F - 230°F
Max. operating pressure at 20 °C 16bar
Max. operating pressure at 20 °C (imperial) 232.06psi
With sealing rings/gaskets No
Capped No
With connection indicator Yes
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water Yes
Certified according to NF 545 No
KIWA certified Yes
Gastec QA mark No
KOMO certified No
