SP6130RVM
The VSH SudoPress SP6130RVM is a reduced T-piece with 3 press ends. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.
applications
solutions
approvals
| color | silver |
|---|---|
| materials | stainless steel (Stainless steel 316L (1.4404)) |
| finishing | none |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | T-piece, reducer (90º) |
| connection type | press (M), Press (M) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| HS code | 73072980 |
| brand | VSH |
| series | SudoPress Stainless |
| type | SP6130RVM |
| UNSPS | 40174607 |
EPD-VSH-SudoPress-Stainless Environmental Product Declaration |
download | |

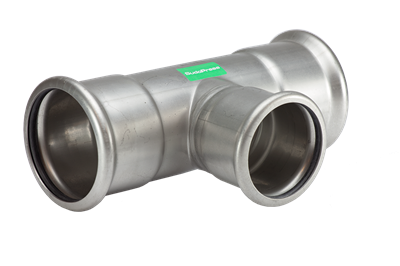

 SP6130RVM image |
png | download |
VSH SudoPress stainless_SVGW_Water certifications |
download | |
 Diagram diagram |
png | download |
VSH SudoPress stainless SVGW Water (FR) certifications |
download | |
Installation instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| Material connection 1 | Stainless steel |
| Material quality connection 1 | Stainless steel 316 L (1.4404) |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Stainless steel |
| Material quality connection 2 | Stainless steel 316 L (1.4404) |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Material connection 3 | Stainless steel |
| Material quality connection 3 | Stainless steel 316 L (1.4404) |
| Surface protection connection 3 | Untreated |
| Surface treatment connection 3 | Untreated |
| Model | T-piece |
| Angle | 90° |
| Reducing | Yes |
| Multi-part | No |
| System specific | Yes |
| Wall thickness, connection 1 | 2mm |
| Connection 1 | Press sleeve |
| Contour code connection 1 | M |
| Wall thickness, connection 2 | 2mm |
| Connection 2 | Press sleeve |
| Contour code connection 2 | M |
| Wall thickness, connection 3 | 2mm |
| Connection 3 | Press sleeve |
| Contour code connection 3 | M |
| Flange compression class | PN 16 |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| Main colour fitting | Grey |
| High tensile strength | Yes |
| Max. operating pressure at 20 °C | 16bar |
| Max. operating pressure at 20 °C (imperial) | 232.06psi |
| Medium temperature (continuous) | -35°C - 135°C |
| Medium temperature (continuous) (imperial) | -31°F - 275°F |
| With sealing rings/gaskets | No |
| With drain valve | No |
| With de-aerator | No |
| With buffer stud | Yes |
| Capped | No |
| With connection indicator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| item number | description | |
|---|---|---|
 |
6118178 | VSH SudoXPress Stainless tube 1.4301 (AISI304) 76.1x2.0 |
|
6195079 | VSH SudoXPress Stainless tube 1.4301 (AISI304) 76.1x2.0 small bundle |
 |
6192373 | VSH SudoXPress Stainless tube 1.4401 (AISI316) 76.1x2.0 (l=6m) small bundle |
|
6117980 | VSH SudoXPress Stainless tube 1.4401 (AISI316) 76.1x2.0 (l=6m) |
|
6118189 | VSH SudoXPress Stainless tube 1.4301 (AISI304) 88.9x2.0 |
|
6195081 | VSH SudoXPress Stainless tube 1.4301 (AISI304) 88.9x2.0 small bundle |
|
6192384 | VSH SudoXPress Stainless tube 1.4401 (AISI316) 88.9x2.0 (l=6m) small bundle |
|
6117991 | VSH SudoXPress Stainless tube 1.4401 (AISI316) 88.9x2.0 (l=6m) |
|
6118200 | VSH SudoXPress Stainless tube 1.4301 (AISI304) 108x2.0 |
|
6195090 | VSH SudoXPress Stainless tube 1.4301 (AISI304) 108x2.0 small bundle |
|
6192395 | VSH SudoXPress Stainless tube 1.4401 (AISI316) 108x2.0 (l=6m) small bundle |
|
6118002 | VSH SudoXPress Stainless tube 1.4401 (AISI316) 108x2.0 (l=6m) |
 |
6562921 | VSH SudoPress O-ring EPDM LBP 76.1 |
|
6562930 | VSH SudoPress O-ring EPDM LBP 88.9 |
 |
6562963 | VSH SudoPress O-ring FPM LBP 76.1 |
|
6562974 | VSH SudoPress O-ring FPM LBP 88.9 |
 |
6341896 | Novopress adapter ZB221 |
 |
6341401 | Novopress sling snap on 76.1 |
 |
6341412 | Novopress sling snap on 88.9 |
|
6562941 | VSH SudoPress O-ring EPDM LBP 108 |
|
6562985 | VSH SudoPress O-ring FPM LBP 108 |
 |
6341907 | Novopress adapter ZB222 |
 |
6341423 | Novopress sling snap on 108 |
| item number | description | ||
|---|---|---|---|
|
6562921 | VSH SudoPress O-ring EPDM LBP 76.1 | 1 |
|
6562930 | VSH SudoPress O-ring EPDM LBP 88.9 | 2 |
|
6562941 | VSH SudoPress O-ring EPDM LBP 108 | 2 |
