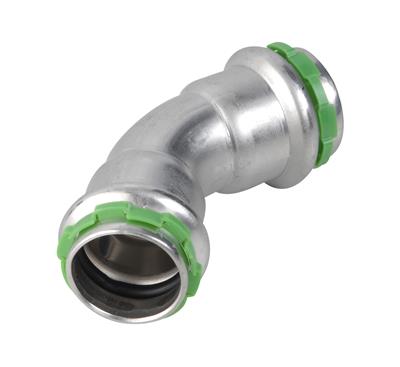

VSH SudoPress Stainless elbow 45° (2 x press)

group: SP6041V

The VSH SudoPress SP6041V is a 45° elbow with 2 press ends. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.

  • double safety through Visu-Control® and Leak Before Pressed function
  • provided with all relevant approvals
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

solar energy

solar energy

vacuum

vacuum

segments

commercial building

commercial building

industry

industry

approvals

DVGW Wasser

DVGW Wasser

KIWA

KIWA

ÖVGW Wasser

ÖVGW Wasser

RISE

RISE

SPF

SPF

SVGW Wasser

SVGW Wasser

ÜA

ÜA

VA (ETA)

VA (ETA)

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

radius

angle

item number

6550214

size

15

d1

15.0

DN1

DN12

l1

34

z1

12

d2

15.0

DN2

DN12

l2

34

z2

12

radius

18

angle

45

item number

6550225

size

18

d1

18.0

DN1

DN15

l1

36

z1

14

d2

18.0

DN2

DN15

l2

36

z2

14

radius

22

angle

45

item number

6550236

size

22

d1

22.0

DN1

DN20

l1

39

z1

16

d2

22.0

DN2

DN20

l2

39

z2

16

radius

27

angle

45

item number

6550247

size

28

d1

28.0

DN1

DN25

l1

43

z1

19

d2

28.0

DN2

DN25

l2

43

z2

19

radius

34

angle

45

item number

6550258

size

35

d1

35.0

DN1

DN32

l1

48

z1

23

d2

35.0

DN2

DN32

l2

48

z2

23

radius

42

angle

45

item number

6550269

size

42

d1

42.0

DN1

DN40

l1

63

z1

27

d2

42.0

DN2

DN40

l2

63

z2

27

radius

51

angle

45

item number

6550271

size

54

d1

54.0

DN1

DN50

l1

74

z1

33

d2

54.0

DN2

DN50

l2

74

z2

33

radius

65

angle

45

technical drawing for product

characteristics

color

silver

materials

stainless steel (Stainless steel 316L (1.4404))

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

Bend (45º)

connection type

press (V)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

73072910

brand

VSH

series

SudoPress Stainless

type

SP6041V

UNSPS

40172807

label

value

label

Material connection 1

value

Stainless steel

label

Material quality connection 1

value

Stainless steel 316 L (1.4404)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Stainless steel

label

Material quality connection 2

value

Stainless steel 316 L (1.4404)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

45°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

V

label

Connection 2

value

Press sleeve

label

Contour code connection 2

value

V

label

Main colour fitting

value

Grey

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-20°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

Yes

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
