VSH SudoPress Copper stop end (1 x male)

VSH SudoPress Copper stop end (1 x male)

SP5290V

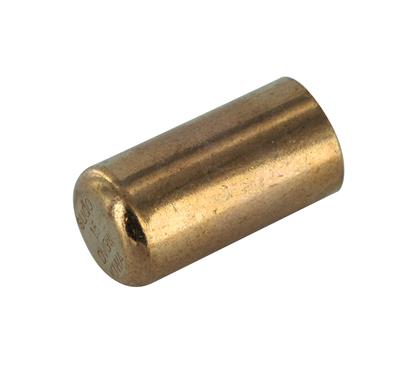

The VSH SudoPress SP5290V is a stop end with a tube end. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.

  • provided with all relevant approvals
  • clear identification on fitting of material and dimension

applications

potable water heating cooling compressed air solar energy vacuum

solutions

building installations shipbuilding industry

approvals

ACS DVGW Gas DVGW Wasser QB (CSTBat) RISE TSU WRAS
item number size weight dimensions packaging gtin
6673183 Ƙ12 0.01 kg 25x16x16 mm bag (10 pce) 03430651365260
6673194 Ƙ15 0.01 kg 30x15x15 mm bag (10 pce) 03430651365277
6673205 Ƙ18 0.02 kg 30x15x15 mm bag (10 pce) 03430651365284
6673216 Ƙ22 0.02 kg 30x20x20 mm bag (5 pce) 03430651365291
6673227 Ƙ28 0.04 kg 30x25x25 mm bag (5 pce) 03430651365307
6673238 Ƙ35 0.05 kg 35x35x35 mm bag (5 pce) 03430651365314
6673249 Ƙ42 0.1 kg 40x40x40 mm bag (1 pce) 03430650365322
6673251 Ƙ54 0.19 kg 50x50x45 mm bag (1 pce) 03430650365339
item number size d1 DN1 l1
6673183 Ƙ12 12.0 DN10 24
6673194 Ƙ15 15.0 DN12 28
6673205 Ƙ18 18.0 DN15 29
6673216 Ƙ22 22.0 DN20 30
6673227 Ƙ28 28.0 DN25 33
6673238 Ƙ35 35.0 DN32 34
6673249 Ƙ42 42.0 DN40 44
6673251 Ƙ54 54.0 DN50 48

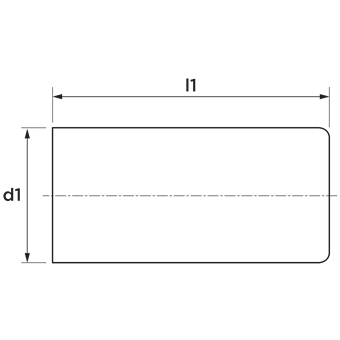

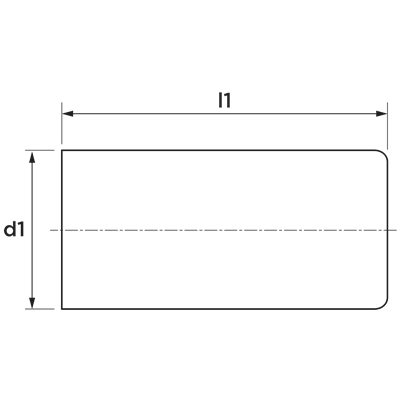

see above for the diagram related to these dimensions
color copper
materials copper (CW024A (UNS C12200))
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape End coupling
connection type tube end
sealing EPDM
product group fittings
ETIM class EC003023 Fitting with 1 connection
HS code 74122000
brand VSH
series SudoPress Copper
type SP5290V
UNSPS 40173507
label value
ETIM class EC003023 Fitting with 1 connection
Material connection 1 Copper
Material quality connection 1 Cu-DHP (CW024A)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
System specific Yes
Connection 1 Spigot/tube end
Max. operating pressure at 20 °C 16bar
Max. operating pressure at 20 °C (imperial) 232.06psi
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Medium temperature (continuous) -20°C - 110°C
Medium temperature (continuous) (imperial) -4°F - 230°F
With sealing rings/gaskets No
With drain valve No
With de-aerator No
Capped No
With connection indicator Yes
FM quality mark No
UL quality mark No
ULC quality mark No
LPCB quality mark No
VdS quality mark No
DVGW quality mark for gas Yes
DVGW quality mark for water Yes
KIWA certified No
Gastec QA mark No
KOMO certified No

accessories

item number description
6558508 VSH SudoPress O-ring FPM LBP 12
6211898 Deburrer for carbon and stainless steel tube 12-54
6558519 VSH SudoPress O-ring FPM LBP 15
6558521 VSH SudoPress O-ring FPM LBP 18
