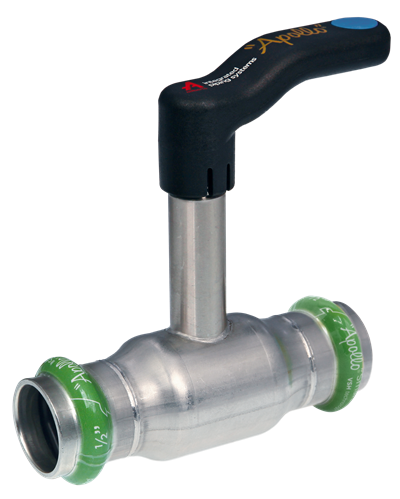

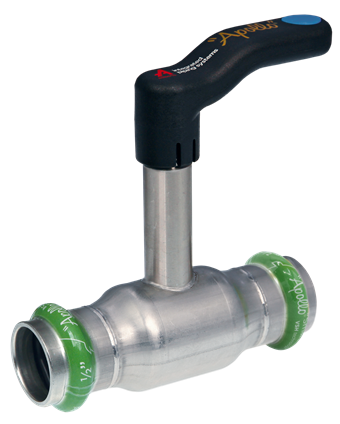

VSH SmartPress FullFlow ball valve extended stem EPDM (2 x press)

group: SM500ESE-VSH

VSH SmartPress is an innovative press connection system designed for joining 1/2"-2" IPS ASTM A312 schedule 5/10s stainless steel pipe (approved for use with both AISI type 304/304L and 316/316L stainless). The VSH SmartPress product range consists of V-profile (type ASP) press fittings and valves produced from AISI 316L stainless steel alloy that are fitted with patented sealing elements for a guaranteed safe, leak-tight and lasting connection. The VSH SmartPress system offers end-users a complete solution with maximum coverage of commercial and industrial applications requiring HNBR, EPDM, or FPM sealing elements.
  • complete range of AISI 316 fittings and valves
  • 500 psi operating pressure
  • color-coded Visu-control® foil for material/dimensions identification and visual press indication
  • patented sealing element design with Leak Before Pressed technology for added safety and optimized installation
  • clear identification of sealing element and dimensions
  • quick installation thanks to pre-marked insertion depth
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

CRN

CRN

NSF/ANSI 372

NSF/ANSI 372

NSF/ANSI 61

NSF/ANSI 61

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

M1

M2

E

H

h2

Y

V

U

D1

item number

123460337

size

1/2"

d1

21.3

DN1

1/2" (DN15)

l1

57

z1

31

d2

21.3

DN2

1/2" (DN15)

l2

57

z2

31

M1

12

M2

75

E

24

H

114

h2

11

Y

43

V

71

U

18

D1

33

item number

123460338

size

3/4"

d1

26.9

DN1

3/4" (DN20)

l1

64

z1

37

d2

26.9

DN2

3/4" (DN20)

l2

64

z2

37

M1

12

M2

75

E

24

H

117

h2

11

Y

43

V

73

U

18

D1

38

item number

123460339

size

1"

d1

33.7

DN1

1" (DN25)

l1

75

z1

45

d2

33.7

DN2

1" (DN25)

l2

75

z2

45

M1

15

M2

100

E

30

H

126

h2

11

Y

50

V

76

U

18

D1

48

item number

123460340

size

1 1/2"

d1

48.3

DN1

1 1/2" (DN40)

l1

103

z1

69

d2

48.3

DN2

1 1/2" (DN40)

l2

103

z2

69

M1

17

M2

165

E

35

H

151

h2

11

Y

51

V

100

U

28

D1

65

item number

123460341

size

2"

d1

60.3

DN1

2" (DN50)

l1

119

z1

79

d2

60.3

DN2

2" (DN50)

l2

119

z2

79

M1

17

M2

165

E

35

H

160

h2

11

Y

51

V

109

U

28

D1

80

item number

size

h2

Y

V

U

D1

1/2"

11

43

71

18

33

3/4"

11

43

73

18

38

1"

11

50

76

18

48

1 1/2"

11

51

100

28

65

2"

11

51

109

28

80

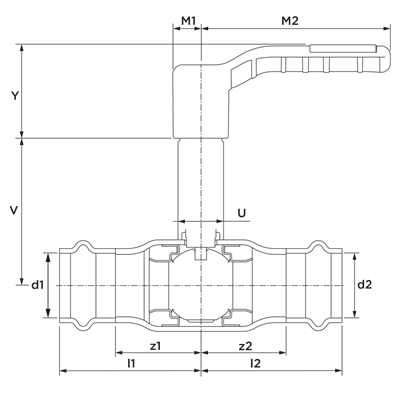

technical drawing for product

characteristics

color

silver

materials

stainless steel (Stainless steel 316L (1.4404))

finishing

none

manufacturer

BROEN

shape

straight (0º)

connection type

press (V)

sealing

EPDM

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

VSH

series
