group: S1226

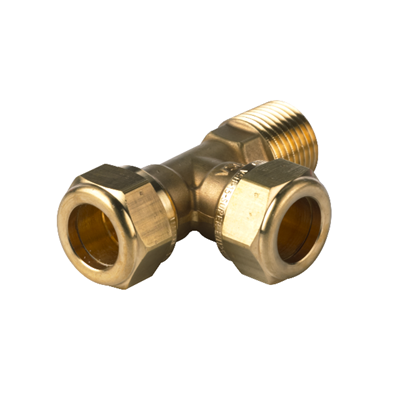

The VSH Super S1226 is a threaded T-piece with 2 compression ends and a male thread end. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.
potable water
natural gas
heating
compressed air
solar energy
hydrogen (H2)
residential
commercial building
industry
DVGW Gas
DVGW Wasser
GASTEC
Gastec-H2-ready
KIWA
VA (ETA)
item number
size
dimensions
weight
packaging
gtin
item number
size
15xR1/2"x15
dimensions
67x28x47 mm
weight
0.13 kg
packaging
bag (25 pce)
gtin
08711985019193
item number
size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
d3
DN3
item number
0867977size
15xR1/2"x15
d1
15.0
DN1
DN12
l1
31
z1
10
slw1
24
d2
15.0
DN2
DN12
l2
35
z2
10
slw2
24
d3
21.3
DN3
1/2" (DN15)
item number
size
l3
color
brass
materials
brass (CW617N)
finishing
none
manufacturer
Aalberts integrated piping systems B.V. (VSH)
shape
T-piece (90º)
connection type
compression, R - male thread gas conical (BSPT)
sealing
Brass
product group
fittings
ETIM class
EC003025 Fitting with 3 connections
HS code
74122000
brand
VSH
series
Super
type
S1226
UNSPS
40174601
SCIP
1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d
image | png
S1226
diagram | png
Diagram
installation- & maintenance document | pdf
VSH Super Gas installation instructions
Environmental Product Declaration | pdf
EPD VSH Super Brass
link to sheet | pdf
MSDS_VSH_Super
certifications | pdf
VSH Super DVGW Gas
certifications | pdf
VSH Super DVGW Water
certifications | pdf
VSH Super Gas GASTEC QA 10-54mm
certifications | pdf
VSH Super Gastec H2
certifications | pdf
VSH Super KIWA Water 10-54 mm
certifications | pdf
VSH Super Knel water 15-54 mm ETA
certifications | pdf
VSH Super PEX ETA 10-22 mm water
installation- & maintenance document | pdf
VSH_Super_Knel_instructie_NL
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Brass
label
Material quality connection 3
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
Yes
label
Nominal diameter connection 1
value
DN 12
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
Connection 1
value
Compression ring
label
Nominal diameter connection 2
value
DN 12
label
Outer pipe diameter connection 2
value
15mm
label
Outer pipe diameter connection 2 (imperial)
value
0.59"
label
Connection 2
value
Compression ring
label
Nominal diameter connection 3
value
1/2 inch (15)
label
Outer pipe diameter connection 3
value
21.3mm
label
Outer pipe diameter connection 3 (imperial)
value
0.84"
label
Connection 3
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Flange compression class
value
PN 10
label
Material sealing
value
Brass
label
Main colour fitting
value
Brass
label
Length of connection 1
value
31mm
label
Length of connection 1 (imperial)
value
1.22"
label
Working length connection 1
value
10mm
label
Working length connection 1 (imperial)
value
0.39"
label
High tensile strength
value
Yes
label
Length of connection 2
value
35mm
label
Length of connection 2 (imperial)
value
1.38"
label
Working length connection 2
value
10mm
label
Working length connection 2 (imperial)
value
0.39"
label
Length of connection 3
value
36mm
label
Length of connection 3 (imperial)
value
1.42"
label
Max. operating pressure at 20 °C
value
10bar
label
Max. operating pressure at 20 °C (imperial)
value
145.04psi
label
Wrench width union nut
value
24mm
label
Wrench width union nut (imperial)
value
0.94"
label
Medium temperature (continuous)
value
-35°C - 200°C
label
Medium temperature (continuous) (imperial)
value
-31°F - 392°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With buffer stud
value
Yes
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
Yes
label
DVGW quality mark for water
value
Yes
label
KIWA certified
value
Yes
label
Gastec QA mark
value
Yes
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
Yes
