VSH XPress Stainless axial compensator (2 x press)

VSH XPress Stainless axial compensator (2 x press)

R2747

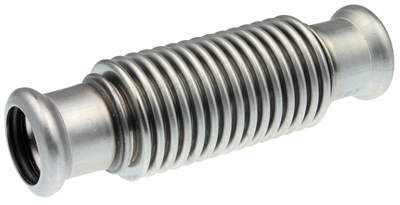

The VSH XPress R2747 is a stainless steel axial compensator with 2 press ends. Is delivered in “0” position. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension

applications

heating cooling steam solar energy

solutions

building installations shipbuilding fire protection industry
item number size weight dimensions packaging gtin
6198302 15 0.06 kg 110x24x24 mm bag (10 pce) 08711985257403
6198313 18 0.08 kg 106x27x27 mm bag (10 pce) 08711985257427
6198324 22 0.15 kg 120x37x37 mm bag (5 pce) 08711985257441
6198335 28 0.18 kg 130x44x44 mm bag (5 pce) 08711985257458
6198346 35 0.26 kg 140x50x50 mm bag (4 pce) 08711985257489
6198357 42 0.33 kg 153x60x60 mm bag (2 pce) 08711985257502
6198368 54 0.43 kg 180x54x54 mm bag (2 pce) 08711985257526
item number size d1 DN1 l1 z1 d2 DN2 l2 z2
6198302 15 15.0 DN12 55 35 15.0 DN12 55 35
6198313 18 18.0 DN15 53 33 18.0 DN15 53 33
6198324 22 22.0 DN20 60 39 22.0 DN20 60 39
6198335 28 28.0 DN25 65 42 28.0 DN25 65 42
6198346 35 35.0 DN32 70 44 35.0 DN32 70 44
6198357 42 42.0 DN40 77 47 42.0 DN40 77 47
6198368 54 54.0 DN50 90 55 54.0 DN50 90 55

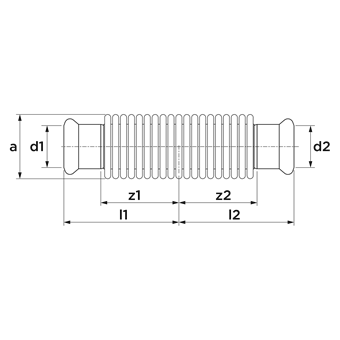

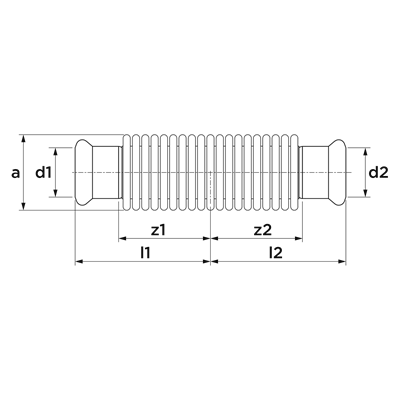

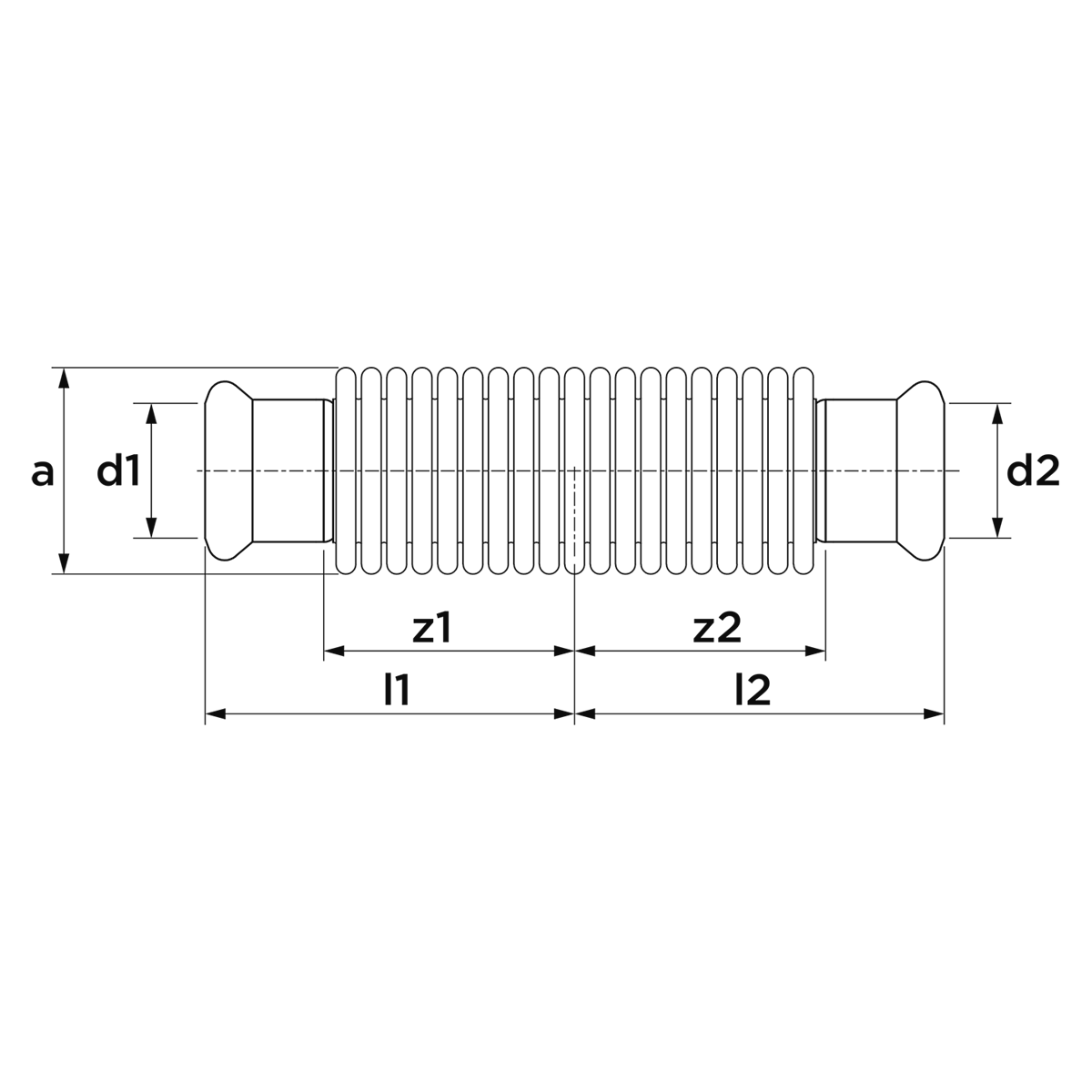

see above for the diagram related to these dimensions
color silver
materials stainless steel (Stainless steel 316L (1.4404))
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape straight
connection type press (M)
sealing EPDM
product group fittings
ETIM class EC003243 Metal compensator
HS code 73072980
brand VSH
series XPress Stainless
type R2747
UNSPS 40172905
label value
ETIM class EC003243 Metal compensator
Material bellows Stainless steel
Material quality bellows Stainless steel 316 (1.4401)
Material of connection Stainless steel
Material quality connection Stainless steel 316 L (1.4404)
Connection Press sleeve
Design form Axial
Max. operating pressure at 20 °C 16bar
Max. operating pressure at 20 °C (imperial) 232.06psi
Flange compression class PN 16
Loose flange No
With interior guide pipe No
With couplers Yes
