VSH XPress Stainless bend pipe 60° (2 x male)

group: R2724

The VSH XPress R2724 is a stainless steel 60° bend pipe with 2 tube ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • provided with all relevant approvals
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

steam

steam

compressed air

compressed air

solar energy

solar energy

sprinkler

sprinkler

dry fire main

dry fire main

vacuum

vacuum

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

ATG

ATG

Bureau Veritas

Bureau Veritas

CNBOP

CNBOP

DVGW Wasser

DVGW Wasser

FG

FG

FM

FM

KIWA

KIWA

Lloyds Register

Lloyds Register

LPCB

LPCB

ÖVGW Wasser

ÖVGW Wasser

PZH

PZH

QB (CSTBat)

QB (CSTBat)

RINA

RINA

RISE

RISE

SBSC

SBSC

SETSCO

SETSCO

SINTEF

SINTEF

SPF

SPF

SVGW Wasser

SVGW Wasser

TA-Luft

TA-Luft

ÜA

ÜA

UK water regulation 4

UK water regulation 4

VA (ETA)

VA (ETA)

VdS

VdS

WRAS

WRAS

item number

size

d1

DN1

l1

z1

es1

d2

DN2

l2

radius

angle

item number

6190184

size

Ø28

d1

28.0

DN1

DN25

l1

63

z1

40

es1

23

d2

28.0

DN2

DN25

l2

121

radius

34

angle

60

item number

6190195

size

Ø35

d1

35.0

DN1

DN32

l1

97

z1

71

es1

26

d2

35.0

DN2

DN32

l2

203

radius

42

angle

60

item number

6191878

size

Ø42

d1

42.0

DN1

DN40

l1

102

z1

72

es1

30

d2

42.0

DN2

DN40

l2

256

radius

51

angle

60

item number

6191889

size

Ø54

d1

54.0

DN1

DN50

l1

162

z1

127

es1

35

d2

54.0

DN2

DN50

l2

306

radius

65

angle

60

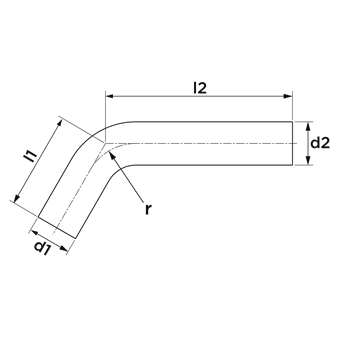

technical drawing for product
