VSH XPress Stainless Gas wallplate 90° (press x female thread)

group: R2716G

The VSH XPress R2716G is a stainless steel 90º wall plate with a press and female thread end, applicable for Gas. Ideal for applications where high levels of hydrogen sulphide make copper an unsuitable material choice. The yellow O-ring and prominent marking on the exterior of this fitting ensure a clear identification of the system.

Safer installation due to no naked flames or heat required
insert stop: stop edge for pipe end
provided with all relevant approvals
clear identification on fitting of material and dimension

natural gas

show all

show less

building installations

industry

show all

show less

ARGB-KVBG

BSI Kitemark

DVGW Gas

ÖVGW Gas

SVGW Gas

show all

show less

assortment

item number	size	weight	dimensions	packaging	gtin
6211557	15xRp1/2"	0.1 kg	45x43x45 mm	bag (10 pce)	08711985210392
6211568	18xRp1/2"	0.1 kg	47x43x45 mm	bag (10 pce)	08711985210408
6211579	22xRp3/4"	0.15 kg	52x52x52 mm	bag (10 pce)	08711985210415

dimensions

item number	size	d1	DN1	l1	z1	d2	DN2	l2	z2	radius	angle
6211557	15xRp1/2"	15.0	DN12	46	25	21.3	1/2" (DN15)	31	19	17	180
6211568	18xRp1/2"	18.0	DN15	47	26	21.3	1/2" (DN15)	31	19	17	180
6211579	22xRp3/4"	22.0	DN20	52	29	26.9	3/4" (DN20)	35	22	20	180

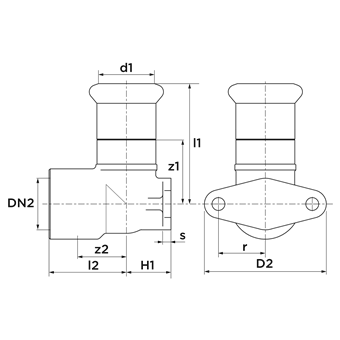

drawing for product

characteristics

characteristics

color	silver
materials	stainless steel (Stainless steel 316L (1.4404))
finishing	none
manufacturer	Aalberts integrated piping systems B.V. (VSH)
shape	Wall plate (180º)
connection type	press (M), Rp - female thread cylindrical (BSPT)
sealing	HNBR

general

general

product group	fittings
ETIM class	EC003099 Wall plate
HS code	73072980
brand	VSH
series	XPress Stainless Gas
type	R2716G

downloads

R2716G image	png	download
VSH XPress Stainless DVGW Gas certifications	pdf	download
VSH XPress Stainless Gas ARGB-KVBG certifications	pdf	download
VSH XPress Stainless Gas BSI certifications	pdf	download
VSH XPress Stainless OVGW Gas certifications	pdf	download
VSH XPress Stainless SVGW Gas certifications	pdf	download
Diagram diagram	png	download
VSH XPress installation instructions installation- & maintenance document	pdf	download

ETIM

label	value
ETIM class	EC003099 Wall plate
Housing material	Stainless steel
Material quality	Stainless steel 316 L (1.4404)
Surface protection	Untreated
Shape	Right-angled
System specific	Yes
Connection	Press sleeve
Wall thickness, connection 1	1.5mm
Medium temperature (continuous)	-20°C - 70°C
Medium temperature (continuous) (imperial)	-4°F - 158°F
Contour code	M
With connection indicator	No
With protective cap	No
DVGW quality mark for gas	Yes
DVGW quality mark for water	No
KIWA certified	No
Gastec QA mark	No
KOMO certified	No
Gastec QA - AR 214 (H2)	No
