VSH XPress Stainless Gas elbow 90° (press x male)

VSH XPress Stainless Gas elbow 90° (press x male)

R2711G

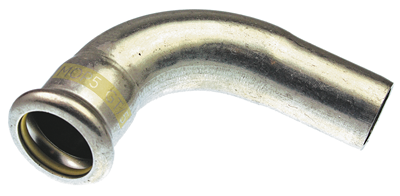

The VSH XPress R2711G is a stainless steel 90º elbow with a press and an tube end, applicable for Gas. Ideal for applications where high levels of hydrogen sulphide make copper an unsuitable material choice. The yellow O-ring and prominent marking on the exterior of this fitting ensure a clear identification of the system.

  • safer installation due to no naked flames or heat required
  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • clear identification on fitting of material and dimension

applications

natural gas compressed air

solutions

building installations industry

approvals

ARGB-KVBG BSI Kitemark DVGW Gas ÖVGW Gas SVGW Gas
assortment
item number size weight dimensions packaging gtin
6210270 15xØ15 0.06 kg 56x68x23 mm bag (10 pce) 08711985211030
6210281 18xØ18 0.07 kg 62x75x27 mm bag (10 pce) 08711985224733
6210292 22xØ22 0.1 kg 71x84x32 mm bag (10 pce) 08711985210736
6210303 28xØ28 0.15 kg 85x99x38 mm bag (5 pce) 08711985224740
6210314 35xØ35 0.2 kg 105x115x45 mm bag (5 pce) 08711985211313
6210325 42xØ42 0.33 kg 136x152x54 mm bag (2 pce) 08711985211009
6210336 54xØ54 0.51 kg 169x182x65 mm bag (2 pce) 08711985210989
6212195 76.1xØ76.1 1.08 kg 188x212x94 mm bag (1 pce) 08711985332698
6212206 88.9xØ88.9 1.42 kg 219x245x109 mm bag (1 pce) 08711985332704
6212217 108xØ108 2.17 kg 270x304x133 mm bag (1 pce) 08711985332711
dimensions
item number size d1 DN1 l1 z1 d2 DN2 l2 z2 radius angle
6210270 15xØ15 15.0 DN12 48 27 15.0 DN12 56 56 23 90
6210281 18xØ18 18.0 DN15 53 32 18.0 DN15 62 62 27 90
6210292 22xØ22 22.0 DN20 60 37 22.0 DN20 68 68 33 90
6210303 28xØ28 28.0 DN25 71 47 28.0 DN25 80 80 42 90
6210314 35xØ35 35.0 DN32 87 60 35.0 DN32 93 67 53 90
6210325 42xØ42 42.0 DN40 115 83 42.0 DN40 125 95 63 90
6210336 54xØ54 54.0 DN50 142 105 54.0 DN50 149 114 81 90
6212195 76.1xØ76.1 76.1 DN65 150 95 76.1 DN65 165 165 91 90
6212206 88.9xØ88.9 88.9 DN80 175 112 88.9 DN80 190 190 107 90
6212217 108xØ108 108.0 DN100 216 138 108.0 DN100 238 238 130 90

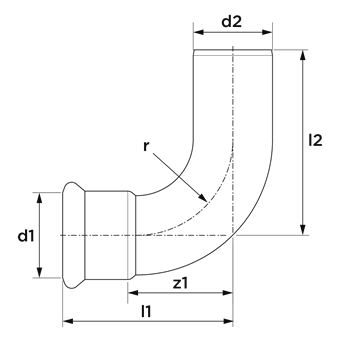

see above for the diagram related to these dimensions
characteristics

characteristics

color silver
materials stainless steel (Stainless steel 316L (1.4404))
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape Bend (90º)
connection type press (M), tube end
sealing HNBR
general

general

product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 73072980
brand VSH
series XPress Stainless Gas
type R2711G
downloads
ETIM
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Stainless steel
Material quality connection 1 Stainless steel 316 L (1.4404)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Stainless steel
Material quality connection 2 Stainless steel 316 L (1.4404)
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Bend
Model 1-part
Bend angle 90°
Reducing No
Eccentric No
System specific Yes
Connection 1 Press sleeve
Contour code connection 1 M
Connection 2 Spigot/tube end
Main colour fitting Grey
Material sealing Hydrogenated acrylonitrile butadiene rubber (HNBR)
With buffer stud Yes
Medium temperature (continuous) -20°C - 70°C
Medium temperature (continuous) (imperial) -4°F - 158°F
With thermal insulation No
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
DIN-CERTCO certificate No
VdS quality mark No
With approval for TÜV No
DVGW quality mark for gas Yes
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
Type approval according to BBR/EKS No

related

accessories

item number description
6211911 VSH XPress Stainless Gas O-ring HNBR 15
6211898 Deburrer for carbon and stainless steel tube 12-54
6118068 VSH SudoXPress Stainless tube 1.4401 (AISI316) 15x1.0 (l=3m)
6192307 VSH SudoXPress Stainless tube 1.4401 (AISI316) 15x1.0 (l=6m) small bundle
6117914 VSH SudoXPress Stainless tube 1.4401 (AISI316) 15x1.0 (l=6m)
6211920 VSH XPress Stainless Gas O-ring HNBR 18
6118079 VSH SudoXPress Stainless tube 1.4401 (AISI316) 18x1.0 (l=3m)
6192318 VSH SudoXPress Stainless tube 1.4401 (AISI316) 18x1.0 (l=6m) small bundle
6117925 VSH SudoXPress Stainless tube 1.4401 (AISI316) 18x1.0 (l=6m)
6211931 VSH XPress Stainless Gas O-ring HNBR 22
6118081 VSH SudoXPress Stainless tube 1.4401 (AISI316) 22x1.2 (l=3m)
6192329 VSH SudoXPress Stainless tube 1.4401 (AISI316) 22x1.2 (l=6m) small bundle
6117936 VSH SudoXPress Stainless tube 1.4401 (AISI316) 22x1.2 (l=6m)
6211942 VSH XPress Stainless Gas O-ring HNBR 28
6118090 VSH SudoXPress Stainless tube 1.4401 (AISI316) 28x1.2 (l=3m)
6192331 VSH SudoXPress Stainless tube 1.4401 (AISI316) 28x1.2 (l=6m) small bundle
6117947 VSH SudoXPress Stainless tube 1.4401 (AISI316) 28x1.2 (l=6m)
6211953 VSH XPress Stainless Gas O-ring HNBR 35
6118101 VSH SudoXPress Stainless tube 1.4401 (AISI316) 35x1.5 (l=3m)
6192340 VSH SudoXPress Stainless tube 1.4401 (AISI316) 35x1.5 (l=6m) small bundle
6117958 VSH SudoXPress Stainless tube 1.4401 (AISI316) 35x1.5 (l=6m)
6211964 VSH XPress Stainless Gas O-ring HNBR 42
6118112 VSH SudoXPress Stainless tube 1.4401 (AISI316) 42x1.5 (l=3m)
6192351 VSH SudoXPress Stainless tube 1.4401 (AISI316) 42x1.5 (l=6m) small bundle
6117969 VSH SudoXPress Stainless tube 1.4401 (AISI316) 42x1.5 (l=6m)
6211975 VSH XPress Stainless Gas O-ring HNBR 54
6118123 VSH SudoXPress Stainless tube 1.4401 (AISI316) 54x1.5 (l=3m)
6192362 VSH SudoXPress Stainless tube 1.4401 (AISI316) 54x1.5 (l=6m) small bundle
6117971 VSH SudoXPress Stainless tube 1.4401 (AISI316) 54x1.5 (l=6m)
6218102 VSH XPress Stainless Gas O-ring HNBR 76.1
6192373 VSH SudoXPress Stainless tube 1.4401 (AISI316) 76.1x2.0 (l=6m) small bundle
6117980 VSH SudoXPress Stainless tube 1.4401 (AISI316) 76.1x2.0 (l=6m)
6192384 VSH SudoXPress Stainless tube 1.4401 (AISI316) 88.9x2.0 (l=6m) small bundle
6117991 VSH SudoXPress Stainless tube 1.4401 (AISI316) 88.9x2.0 (l=6m)
6218113 VSH XPress Stainless Gas O-ring HNBR 88.9
6218124 VSH XPress Stainless Gas O-ring HNBR 108
6192395 VSH SudoXPress Stainless tube 1.4401 (AISI316) 108x2.0 (l=6m) small bundle
6118002 VSH SudoXPress Stainless tube 1.4401 (AISI316) 108x2.0 (l=6m)
123459658 VSH XPress Stainless Gas O-ring HNBR 15
123459657 VSH XPress Stainless Gas O-ring HNBR 18
123459656 VSH XPress Stainless Gas O-ring HNBR 22
123459655 VSH XPress Stainless Gas O-ring HNBR 28
123459654 VSH XPress Stainless Gas O-ring HNBR 35
123459653 VSH XPress Stainless Gas O-ring HNBR 42
123459652 VSH XPress Stainless Gas O-ring HNBR 54

contains

item number description
6211911 VSH XPress Stainless Gas O-ring HNBR 15 1
6211920 VSH XPress Stainless Gas O-ring HNBR 18 1
6211931 VSH XPress Stainless Gas O-ring HNBR 22 1
6211942 VSH XPress Stainless Gas O-ring HNBR 28 1
6211953 VSH XPress Stainless Gas O-ring HNBR 35 1
6211964 VSH XPress Stainless Gas O-ring HNBR 42 1
6211975 VSH XPress Stainless Gas O-ring HNBR 54 1
6218102 VSH XPress Stainless Gas O-ring HNBR 76.1 1
6218113 VSH XPress Stainless Gas O-ring HNBR 88.9 1
6218124 VSH XPress Stainless Gas O-ring HNBR 108 1
123459658 VSH XPress Stainless Gas O-ring HNBR 15 1
123459657 VSH XPress Stainless Gas O-ring HNBR 18 1
123459656 VSH XPress Stainless Gas O-ring HNBR 22 1
123459655 VSH XPress Stainless Gas O-ring HNBR 28 1
123459654 VSH XPress Stainless Gas O-ring HNBR 35 1
123459653 VSH XPress Stainless Gas O-ring HNBR 42 1
123459652 VSH XPress Stainless Gas O-ring HNBR 54 1
