VSH XPress Stainless reducer (male x press)

VSH XPress Stainless reducer (male x press)

R2707

The VSH XPress R2707 is a stainless steel reducer with a press and tube end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension

applications

potable water heating cooling steam compressed air solar energy sprinkler dry fire main vacuum

solutions

building installations shipbuilding fire protection industry

approvals

ACS ATG CNBOP DVGW Wasser FM FG KIWA Lloyds Register LPCB ÖVGW Wasser PZH QB (CSTBat) RINA RISE SBSC SETSCO SINTEF SPF SVGW Wasser TA-Luft UL ÜA ULc VA (ETA) VdS WRAS
item number size weight dimensions packaging gtin
6198951 Ø15x12 0.03 kg 50x15x15 mm bag (10 pce) 08711985333039
6191121 Ø18x15 0.04 kg 60x23x23 mm bag (10 pce) 08711985152524
6191130 Ø22x15 0.05 kg 61x23x23 mm bag (10 pce) 08711985152548
6191141 Ø22x18 0.05 kg 58x27x27 mm bag (10 pce) 08711985152562
6191152 Ø28x15 0.06 kg 67x28x28 mm bag (10 pce) 08711985152586
6191163 Ø28x18 0.06 kg 65x28x28 mm bag (10 pce) 08711985152609
6191174 Ø28x22 0.06 kg 63x32x32 mm bag (10 pce) 08711985152623
6192221 Ø35x15 0.08 kg 79x35x35 mm bag (5 pce) 08711985152647
6191185 Ø35x18 0.08 kg 77x35x35 mm bag (5 pce) 08711985152661
6191196 Ø35x22 0.08 kg 72x35x35 mm bag (5 pce) 08711985152685
6191207 Ø35x28 0.09 kg 69x38x38 mm bag (5 pce) 08711985152708
6192230 Ø42x15 0.1 kg 88x42x42 mm bag (5 pce) 08711985152722
6192241 Ø42x18 0.11 kg 87x42x42 mm bag (5 pce) 08711985152746
6191218 Ø42x22 0.11 kg 86x42x42 mm bag (4 pce) 08711985153248
6191229 Ø42x28 0.12 kg 82x42x42 mm bag (4 pce) 08711985152777
6191231 Ø42x35 0.12 kg 77x45x45 mm bag (4 pce) 08711985152791
6192252 Ø54x15 0.14 kg 99x54x54 mm bag (4 pce) 08711985152814
6192263 Ø54x18 0.15 kg 98x54x54 mm bag (4 pce) 08711985152838
6191240 Ø54x22 0.15 kg 100x54x54 mm bag (4 pce) 08711985152852
6191251 Ø54x28 0.16 kg 97x54x54 mm bag (4 pce) 08711985152876
6191262 Ø54x35 0.16 kg 94x54x54 mm bag (4 pce) 08711985152890
6191273 Ø54x42 0.18 kg 95x54x54 mm bag (4 pce) 08711985152913
6204211 Ø76.1x42 0.48 kg 151x76x76 mm bag (4 pce) 08711985249248
6204220 Ø76.1x54 0.46 kg 140x76x76 mm bag (4 pce) 08711985249255
6204231 Ø88.9x54 0.6 kg 156x89x89 mm bag (4 pce) 08711985249262
6204242 Ø88.9x76.1 0.66 kg 156x94x94 mm bag (4 pce) 08711985249279
6204253 Ø108x54 0.89 kg 204x108x108 mm bag (2 pce) 08711985249286
6204264 Ø108x76.1 0.99 kg 196x108x108 mm bag (2 pce) 08711985249293
6204275 Ø108x88.9 1 kg 190x109x109 mm bag (2 pce) 08711985249309
item number size d1 l1 z1 DN1 d2 l2 z2 DN2
6198951 Ø15x12 15 (DN12) 25 5 DN12 12 (DN10) 25 8 DN10
6191121 Ø18x15 18 (DN15) 28 8 DN15 15 (DN12) 27 7 DN12
6191130 Ø22x15 22 (DN20) 33 12 DN20 15 (DN12) 28 8 DN12
6191141 Ø22x18 22 (DN20) 30 9 DN20 18 (DN15) 28 8 DN15
6191152 Ø28x15 28 (DN25) 40 17 DN25 15 (DN12) 28 8 DN12
6191163 Ø28x18 28 (DN25) 38 15 DN25 18 (DN15) 28 8 DN15
6191174 Ø28x22 28 (DN25) 34 11 DN25 22 (DN20) 29 8 DN20
6192221 Ø35x15 35 (DN32) 47 21 DN32 15 (DN12) 32 12 DN12
6191185 Ø35x18 35 (DN32) 46 20 DN32 18 (DN15) 32 12 DN15
6191196 Ø35x22 35 (DN32) 42 16 DN32 22 (DN20) 29 8 DN20
6191207 Ø35x28 35 (DN32) 38 12 DN32 28 (DN25) 31 8 DN25
6192230 Ø42x15 42 (DN40) 57 27 DN40 15 (DN12) 32 12 DN12
6192241 Ø42x18 42 (DN40) 55 25 DN40 18 (DN15) 32 12 DN15
6191218 Ø42x22 42 (DN40) 53 23 DN40 22 (DN20) 33 12 DN20
6191229 Ø42x28 42 (DN40) 51 21 DN40 28 (DN25) 31 8 DN25
6191231 Ø42x35 42 (DN40) 42 12 DN40 35 (DN32) 34 8 DN32
6192252 Ø54x15 54 (DN50) 68 33 DN50 15 (DN12) 32 12 DN12
6192263 Ø54x18 54 (DN50) 69 33 DN50 18 (DN15) 29 12 DN15
6191240 Ø54x22 54 (DN50) 66 31 DN50 22 (DN20) 33 12 DN20
6191251 Ø54x28 54 (DN50) 62 27 DN50 28 (DN25) 34 11 DN25
6191262 Ø54x35 54 (DN50) 60 25 DN50 35 (DN32) 34 8 DN32
6191273 Ø54x42 54 (DN50) 55 20 DN50 42 (DN40) 40 10 DN40
6204211 Ø76.1x42 76.1 (DN65) 72 17 DN65 42 (DN40) 79 49 DN40
6204220 Ø76.1x54 76.1 (DN65) 98 43 DN65 54 (DN50) 42 7 DN50
6204231 Ø88.9x54 88.9 (DN80) 114 51 DN80 54 (DN50) 42 7 DN50
6204242 Ø88.9x76.1 88.9 (DN80) 88 25 DN80 76.1 (DN65) 68 13 DN65
6204253 Ø108x54 108 (DN100) 138 61 DN100 54 (DN50) 66 31 DN50
6204264 Ø108x76.1 108 (DN100) 127 50 DN100 76.1 (DN65) 69 14 DN65
6204275 Ø108x88.9 108 (DN100) 113 36 DN100 88.9 (DN80) 77 14 DN80

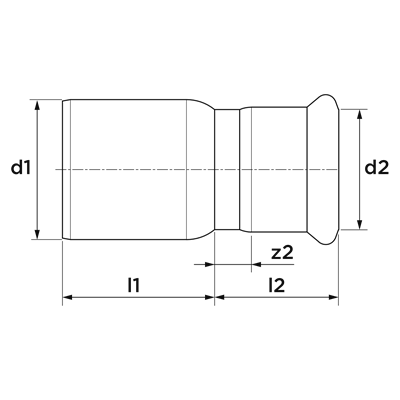

see above for the diagram related to these dimensions
color silver
materials stainless steel (Stainless steel 316L (1.4404))
finishing none
manufacturer 8711985000009
shape straight, reducer
connection type tube end, press (M)
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 73072980
country of origin Netherlands
brand VSH
series XPress Stainless
type R2707
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Stainless steel
Material quality connection 1 Stainless steel 316 L (1.4404)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Stainless steel
Material quality connection 2 Stainless steel 316 L (1.4404)
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Straight
Model 1-part
Reducing Yes
Eccentric No
System-specific Yes
Connection 1 Spigot / tube end
Connection 2 Press sleeve
Contour code connection 2 M
Flange compression class PN 16
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Main colour fitting Grey
High tensile strength Yes
Medium temperature (continuous) -35°C - 135°C
Medium temperature (continuous) (imperial) -31°F - 275°F
Max. operating pressure at 20 °C 16bar
Max. operating pressure at 20 °C (imperial) 232.06psi
With sealing rings/gaskets No
With thermal insulation No
With buffer stud Yes
Capped No
With drain No
With de-aerator No
Connection indicator No
DIN-CERTCO certificate No
With approval for TÜV No
DVGW quality mark for gas No
DVGW quality mark for water Yes
KIWA certified Yes
Gastec QA mark No
KOMO certified No
Type approval according to BBR/EKS No
