Product Image for VSH XPress Sprinkler ML elbow 45° (2 x press)

group: ML7113

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

sprinkler

show all

show less

fire protection

show all

show less

VdS

show all

show less

item number

size

dimensions

weight

packaging

gtin

item number

size

32

dimensions

111x73x39 mm

weight

0.11 kg

packaging

bag (5 pce)

gtin

05414764439665

item number

size

40

dimensions

124x70x47 mm

weight

0.16 kg

packaging

bag (5 pce)

gtin

05414764191761

item number

size

50

dimensions

164x90x57 mm

weight

0.29 kg

packaging

bag (1 pce)

gtin

05414764191808

item number

size

63

dimensions

199x110x70 mm

weight

0.5 kg

packaging

bag (1 pce)

gtin

05414764191846

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

angle

item number

size

32

d1

32.0

DN1

DN25

l1

56

z1

14

d2

32.0

DN2

DN25

l2

56

z2

14

angle

45

item number

size

40

d1

40.0

DN1

DN32

l1

61

z1

25

d2

40.0

DN2

DN32

l2

61

z2

25

angle

45

item number

size

50

d1

50.0

DN1

DN40

l1

81

z1

30

d2

50.0

DN2

DN40

l2

81

z2

30

angle

45

item number

size

63

d1

63.0

DN1

DN50

l1

97

z1

33

d2

63.0

DN2

DN50

l2

97

z2

33

angle

45

characteristics

color

black

materials

plastic (PVDF)

finishing

none

shape

Bend (45º)

connection type

press (BE)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

39174000

brand

VSH

series

XPress Sprinkler ML

type

ML7113

technical

max operating pressure liquid

10 bar

min. medium temperature

10 °C

max medium temperature

49 °C

peak medium temperature

95 °C

image for ML7113

image | jpg

ML7113

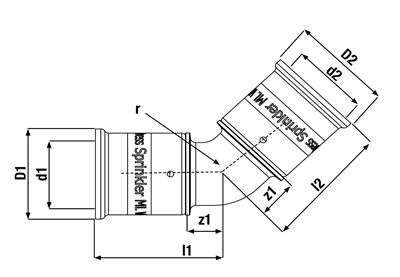

image for Diagram

diagram | png

Diagram

certifications | pdf

VdS

certifications | pdf

VdS

label

value

label

ETIM class

value

EC003024 Fitting with 2 connections

label

Material connection 1

value

Polyvinylidene fluoride (PVDF)

label

Material quality connection 1

value

Polyvinylidene fluoride (PVDF) (expired)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Polyvinylidene fluoride (PVDF)

label

Material quality connection 2

value

Polyvinylidene fluoride (PVDF) (expired)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Bend angle

value

45°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

BE

label

Connection 2

value

Press sleeve

label

Contour code connection 2

value

BE

label

Main colour fitting

value

Black

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

10°C - 49°C

label

Medium temperature (continuous) (imperial)

value

50°F - 120.2°F

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

Yes

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

Yes

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
