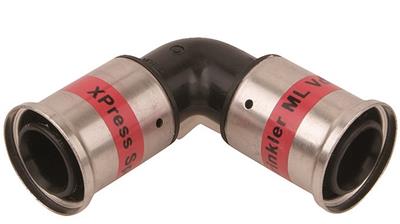

VSH XPress Sprinkler ML elbow 90° (2 x press)

VSH XPress Sprinkler ML elbow 90° (2 x press)

ML7108

applications

sprinkler

solutions

fire protection

approvals

VdS
item number size weight dimensions packaging gtin
6350179 32 0.06 kg 139x39x39 mm bag (5 pce) 05414764189324
6350181 40 0.17 kg 150x47x47 mm bag (5 pce) 05414764189362
6350190 50 0.31 kg 196x57x57 mm bag (1 pce) 05414764189447
6350201 63 0.54 kg 234x70x70 mm bag (1 pce) 05414764189485

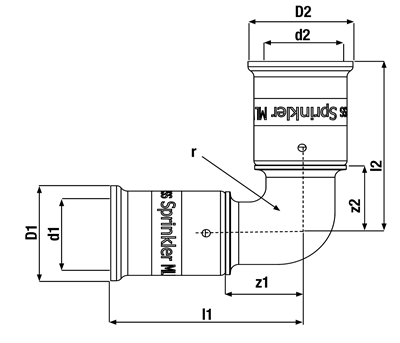

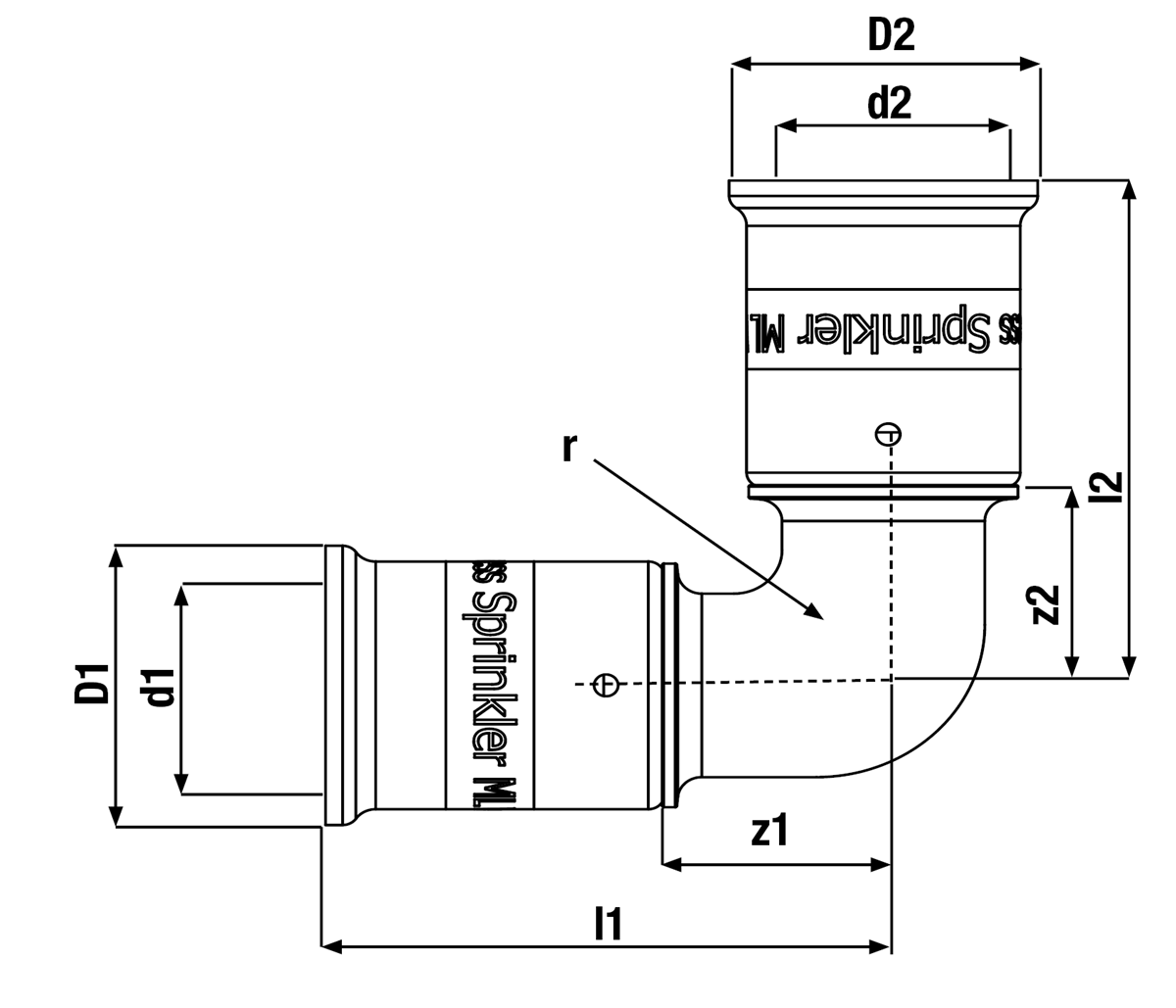

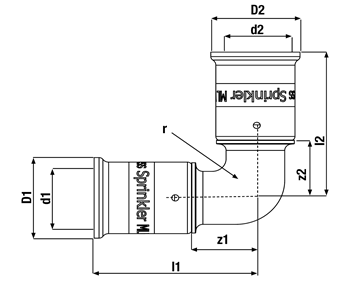

item number size d1 DN1 l1 z1 d2 DN2 l2 z2
6350179 32 32.0 DN25 70 34 32.0 DN25 70 34
6350181 40 40.0 DN32 75 39 40.0 DN32 75 39
6350190 50 50.0 DN40 98 47 50.0 DN40 98 47
6350201 63 63.0 DN50 117 53 63.0 DN50 117 53
see above for the diagram related to these dimensions
color black
materials plastic (PVDF)
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape Elbow (90º)
connection type press (BE)
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 39174000
brand VSH
series XPress Sprinkler ML
type ML7108
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Polyvinylidene fluoride (PVDF)
Material quality connection 1 Polyvinylidene fluoride (PVDF) (expired)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Polyvinylidene fluoride (PVDF)
Material quality connection 2 Polyvinylidene fluoride (PVDF) (expired)
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Bend
Bend angle 90°
Reducing No
Eccentric No
System specific Yes
Connection 1 Press sleeve
Contour code connection 1 BE
Connection 2 Press sleeve
Contour code connection 2 BE
Main colour fitting Black
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud No
High tensile strength Yes
Medium temperature (continuous) 10°C - 49°C
Medium temperature (continuous) (imperial) 50°F - 120.2°F
With sealing rings/gaskets No
Capped No
With connection indicator Yes
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark Yes
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
