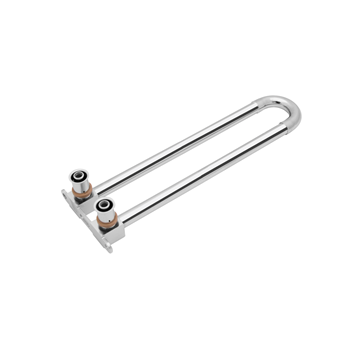

VSH UltraPress floor plate double (2 x press x male)

group: K7269

The VSH UltraPress K7269 is a double floor plate with 2 press and male ends. With VSH UltraPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH UltraPress is the ideal plastic tube system due to its handy features.

  • Pressable with both U- and TH-profile
  • Color coding per size
  • Optimal positioning of the press jaw for fast and secure pressing
  • Leak Before Pressed function up to 32 mm
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

residential

residential

commercial building

commercial building

approvals

KOMO

KOMO

item number

size

dimensions

weight

packaging

gtin

item number

3805714

size

16xØ15 l=50mm Ni

dimensions

363x47x102 mm

weight

0.5 kg

packaging

carton (10 pce)

gtin

08711985277814

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

d4

DN4

l4

radius

item number

3805714

size

16xØ15 l=50mm Ni

d1

16.0

DN1

DN12

l1

39

z1

16

d2

16.0

DN2

DN12

l2

39

z2

16

d3

15.0

DN3

DN12

l3

300

d4

15.0

DN4

DN12

l4

300

radius

44

technical drawing for product

characteristics

color

silver

materials

brass (CW617N)

finishing

nickel-plated

shape

Floor plate

connection type

press (TH/U), Tube end, tube end

sealing

EPDM

general

product group

fittings

ETIM class

EC010162 Wall plate on bracket

HS code

74122000

brand

VSH

series

UltraPress

type

K7269

SCIP

e83ea394-2a3f-4a9f-92a4-760b0a4b74f8

technical

max operating pressure liquid

10 bar

min. medium temperature

-20 °C

max medium temperature

70 °C

peak medium temperature

95 °C

image for Diagram

diagram | png

Diagram

image for K7269

image | png

K7269

installation- & maintenance document | pdf

VSH UltraPress installation Instructions

certifications | pdf

Reach declaration

certifications | pdf

VSH MultiPress KOMO 14-40mm

image for 3805714

image | png

3805714

label

value

label

ETIM class

label

System specific

value

Yes

label

Surface protection

value

Nickel-plated

label

Nominal diameter connection

value

DN 12

label

Outer pipe diameter connection

value

16mm

label

Outer pipe diameter connection (imperial)

value

0.63"

label

Connection

value

Press sleeve

label

Length of connection 1

value

39mm

label

Length of connection 1 (imperial)

value

1.54"

label

Working length connection 1

value

16mm

label

Working length connection 1 (imperial)

value

0.63"

label

Wall thickness, connection 1

value

0.63mm

label

Wall thickness, connection 1 (imperial)

value

0.02"

label

Length of connection 2

value

300mm

label

Length of connection 2 (imperial)

value

11.81"

label

Wall thickness, connection 2

value

0.63mm

label

Wall thickness, connection 2 (imperial)

value

0.02"

label

Length from wall plate

value

102mm

label

Length from wall plate (imperial)

value

4.02"

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

With connection indicator

value

Yes

label

With protective cap

value

No

label

Medium temperature (continuous)

value

-20°C - 70°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 158°F

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KOMO certified

value

Yes
