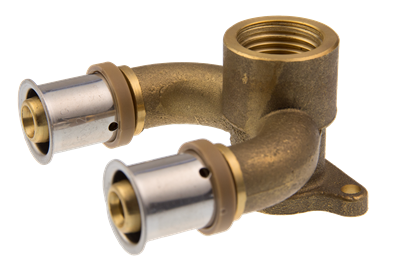

VSH MultiPress looped wall plate (press x female thread x press)

group: K7264

The VSH Multipress K7264 is a looped wall plate with 2 press ends and a female thread end. With VSH MultiPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH Multipress is the ideal plastic tube system due to its handy features.

  • Pressable with both U- and TH-profile
  • Color coding per size
  • Optimal positioning of the press jaw for fast and secure pressing
  • Leak Before Pressed function up to 32 mm
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

compressed air

compressed air

segments

residential

residential

commercial building

commercial building

approvals

DVGW Wasser

DVGW Wasser

KIWA

KIWA

KOMO

KOMO

VA (ETA)

VA (ETA)

WRAS

WRAS

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

z3

item number

3824271

size

16xRp1/2"x16

d1

16.0

DN1

DN12

l1

57

z1

34

d2

16.0

DN2

DN12

l2

57

z2

34

d3

21.3

DN3

1/2" (DN15)

l3

21

z3

7

item number

3824282

size

20xRp1/2"x20

d1

20.0

DN1

DN15

l1

57

z1

34

d2

20.0

DN2

DN15

l2

57

z2

34

d3

21.3

DN3

1/2" (DN15)

l3

21

z3

7

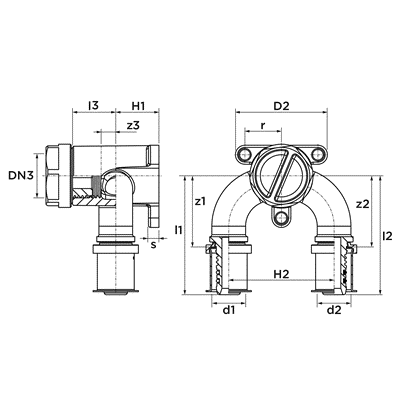

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

Wall plate (90º)

connection type

press (TH/U), G - female thread gas cylindrical (BSPP)

sealing

EPDM

general

product group

fittings

ETIM class

EC003099 Wall plate

HS code

74122000

brand

VSH

series

MultiPress

type

K7264

SCIP

e83ea394-2a3f-4a9f-92a4-760b0a4b74f8

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection

value

Untreated

label

Shape

value

Continuous parallel

label

System specific

value

Yes

label

Connection

value

Press sleeve

label

Length of connection 1

value

57mm

label

Length of connection 1 (imperial)

value

2.24"

label

Working length connection 1

value

34mm

label

Working length connection 1 (imperial)

value

1.34"

label

Wall thickness, connection 1

value

0.63mm

label

Length of connection 2

value

57mm

label

Length of connection 2 (imperial)

value

2.24"

label

Working length connection 2

value

34mm

label

Working length connection 2 (imperial)

value

1.34"

label

Wall thickness, connection 2

value

0.63mm

label

Length from wall plate

value

42mm

label

Length of connection 3

value

21mm

label

Length of connection 3 (imperial)

value

0.83"

label

Working length connection 3

value

7mm

label

Working length connection 3 (imperial)

value

0.28"

label

Medium temperature (continuous)

value

-20°C - 70°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 158°F

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Contour code

value

TH/U

label

With connection indicator

value

Yes

label

With protective cap

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

Yes

label

Gastec QA - AR 214 (H2)

value

No
