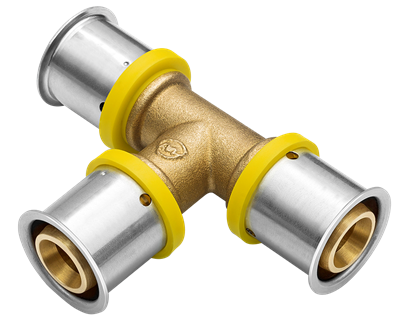

VSH MultiPress Gas T-piece (3 x press)

VSH MultiPress Gas T-piece (3 x press)

K7240G

The VSH Multipress Gas K7240G is a T-piece with 3 press ends, applicable for gas. With VSH MultiPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH Multipress is the ideal plastic tube system due to its handy features.

  • Pressable with both U- and TH-profile
  • Color coding per size
  • Optimal positioning of the press jaw for fast and secure pressing
  • Leak Before Pressed function up to 32 mm

applications

natural gas

solutions

building installations industry

approvals

GASTEC
item number size weight dimensions packaging gtin
3860241 16 0.06 kg 78x52x21 mm bag (10 pce) 08711985366051
3860252 20 0.11 kg 82x58x26 mm bag (5 pce) 08711985366068
3860263 25 0.21 kg 112x75x32 mm bag (2 pce) 08711985366075
item number size d1 DN1 l1 z1 d2 DN2 l2 z2 d3 DN3 l3 z3
3860241 16 16.0 DN12 39 16 16.0 DN12 41 18 16.0 DN12 39 16
3860252 20 20.0 DN15 41 18 20.0 DN15 45 22 20.0 DN15 41 18
3860263 25 25.0 DN20 56 24 25.0 DN20 59 27 25.0 DN20 56 24
see above for the diagram related to these dimensions
color brass
materials brass (CW617N)
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape T-piece (90Āŗ)
connection type press (U, TH/U), Press (U, TH/U)
sealing HNBR
product group fittings
ETIM class EC003025 Fitting with 3 connections
HS code 74122000
brand VSH
series MultiPress Gas
type K7240G
label value
ETIM class EC003025 Fitting with 3 connections
Material connection 1 Brass
Material quality connection 1 CuZn40Pb2 (CW617N)
Material connection 2 Brass
Material quality connection 2 CuZn40Pb2 (CW617N)
Material connection 3 Brass
Material quality connection 3 CuZn40Pb2 (CW617N)
Model T-piece
Angle 90°
Reducing No
Multi-part No
System specific Yes
Connection 1 Press sleeve
Connection 2 Press sleeve
Connection 3 Press sleeve
Material sealing Hydrogenated acrylonitrile butadiene rubber (HNBR)
Main colour fitting Brass
High tensile strength Yes
Medium temperature (continuous) -10°C - 60°C
Medium temperature (continuous) (imperial) 14°F - 140°F
With sealing rings/gaskets No
With drain valve No
With de-aerator No
With buffer stud Yes
Capped No
With connection indicator Yes
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
KIWA certified No
Gastec QA mark Yes
KOMO certified No
