VSH Multicon S wall plate (sleeve x female thread)

group: K3257

The VSH Multicon S K3257 is a cover plate with a sleeve- and female thread end. Stainless screws and plugs are included. This fitting is usable with multilayer- and PEx tube. With VSH Multicon S, Aalberts integrated piping systems offers a complete plastic piping system for installing central heating, gas, drinking water, cooling and oil-free compressed air installations. VSH Multicon S provides a complete range of fittings, plastic pipes, valves and tools.

  • Low flow resistance and noise
  • Quick and secure installation
  • Clear visual inspection (Leake Before Pressed)
  • Slim compression sleeve fittings made of dezincification resistant brass
  • Provided with all relevant approvals

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

approvals

no approvals available

item number

size

d1

DN1

l1

DN2

item number

0726693

size

16xG1/2"

d1

16.0

DN1

DN12

l1

80

DN2

1/2" (DN15)

technical drawing for product

characteristics

color

silver

materials

stainless steel

finishing

none

shape

Square

connection type

sleeve, G - female thread gas cylindrical (BSPP)

pressure rating (PN)

PN 10

sealing

EPDM

general

product group

taps (accessories (taps), facade taps)

ETIM class

EC011750 Wall plate for outside tap

HS code

74122000

brand

VSH

series

Multicon S

type

K3257

SCIP

3495a54f-f25e-460e-99d9-1886db420b50

technical

max operating pressure liquid

10 bar

min. medium temperature

-20 °C

max medium temperature

70 °C

peak medium temperature

95 °C

image for K3257

image | png

K3257

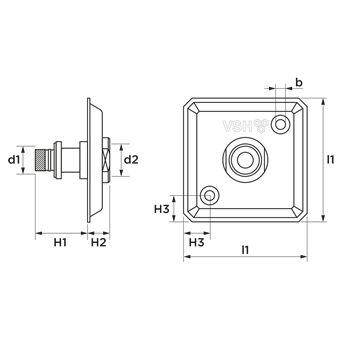

image for Diagram

diagram | png

Diagram

label

value

label

Material

value

Stainless steel

label

Connection supply

value

Slide

label

Connection size supply

value

DN 12

label

Connection tap

value

Internal thread

label

Connection size tap

value

1/2 inch

label

KIWA certified

value

No
