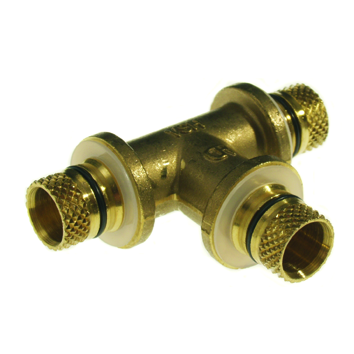

VSH Multicon S T-piece (3 x sleeve)

group: K3240

The VSH Multicon S K3240 is a T-piece with 3 sleeve ends. With VSH Multicon S, Aalberts integrated piping systems offers a complete plastic piping system for installing central heating, gas, drinking water, cooling and oil-free compressed air installations. VSH Multicon S provides a complete range of fittings, plastic pipes, valves and tools.

  • Low flow resistance and noise
  • Quick and secure installation
  • Clear visual inspection (Leake Before Pressed)
  • Slim compression sleeve fittings made of dezincification resistant brass
  • Provided with all relevant approvals

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

approvals

KIWA

KIWA

KOMO

KOMO

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

z3

item number

0727166

size

14

d1

14.0

DN1

DN10

l1

31

z1

18

d2

14.0

DN2

DN10

l2

35

z2

22

d3

14.0

DN3

DN10

l3

31

z3

18

item number

0726341

size

16

d1

16.0

DN1

DN12

l1

31

z1

19

d2

16.0

DN2

DN12

l2

36

z2

23

d3

16.0

DN3

DN12

l3

31

z3

19

item number

0726330

size

20

d1

20.0

DN1

DN15

l1

35

z1

19

d2

20.0

DN2

DN15

l2

41

z2

25

d3

20.0

DN3

DN15

l3

35

z3

19

item number

0726418

size

26

d1

26.0

DN1

DN20

l1

42

z1

21

d2

26.0

DN2

DN20

l2

48

z2

27

d3

26.0

DN3

DN20

l3

42

z3

21

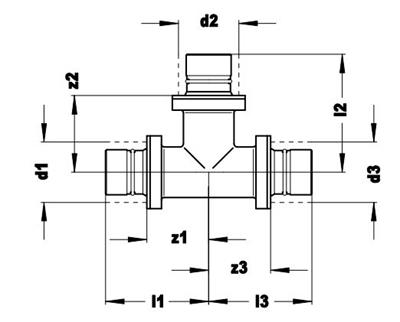

technical drawing for product

characteristics

color

brass

materials

brass

finishing

none

shape

T-piece (90º)

connection type

sleeve

sealing

EPDM

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

74122000

brand

VSH

series

Multicon S

type

K3240

SCIP

3495a54f-f25e-460e-99d9-1886db420b50

label

value

label

Material connection 1

value

Brass

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Material connection 3

value

Brass

label

Surface protection connection 3

value

Untreated

label

Surface treatment connection 3

value

Untreated

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Slide sleeve

label

Connection 2

value

Slide sleeve

label

Connection 3

value

Slide sleeve

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Main colour fitting

value

Brass

label

High tensile strength

value

Yes

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

With buffer stud

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

Yes

label

Gastec QA - AR 214 (H2)

value

No
