VSH Multicon S elbow 90° (2 x sleeve)

VSH Multicon S elbow 90° (2 x sleeve)

K3230

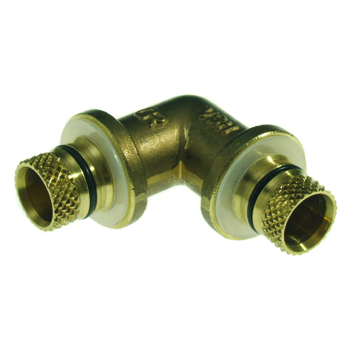

The VSH Multicon S K3230 is a 90° elbow with 2 sleeve ends. With VSH Multicon S, Aalberts integrated piping systems offers a complete plastic piping system for installing central heating, gas, drinking water, cooling and oil-free compressed air installations. VSH Multicon S provides a complete range of fittings, plastic pipes, valves and tools.

  • Low flow resistance and noise
  • Quick and secure installation
  • Clear visual inspection (Leake Before Pressed)
  • Slim compression sleeve fittings made of dezincification resistant brass
  • Provided with all relevant approvals

applications

potable water heating cooling compressed air

solutions

building installations

approvals

KIWA KOMO
item number size weight dimensions packaging gtin
0727144 14 0.06 kg 43x43x20 mm bag (10 pce) 08711985069167
0726121 16 0.06 kg 45x45x22 mm bag (10 pce) 08711985051872
0726101 20 0.1 kg 51x51x26 mm bag (10 pce) 08711985051889
0726132 26 0.12 kg 62x62x31 mm bag (10 pce) 08711985051902
item number size d1 l1 z1 DN1 d2 l2 z2 DN2
0727144 14 14 (DN10) 34 21 DN10 14 (DN10) 34 21 DN10
0726121 16 16 (DN12) 34 21 DN12 16 (DN12) 34 22 DN12
0726101 20 20 (DN15) 38 22 DN15 20 (DN15) 38 22 DN15
0726132 26 26 (DN20) 46 25 DN20 26 (DN20) 46 25 DN20
see above for the diagram related to these dimensions
color brass
materials brass
finishing none
manufacturer 8711985000009
shape Elbow (90º)
connection type sleeve
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 74122000
country of origin Netherlands
brand VSH
series Multicon S
type K3230
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Brass
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Brass
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Bend
Bend angle 90°
Reducing No
Eccentric No
System-specific Yes
Connection 1 Slide sleeve
Connection 2 Slide sleeve
Flange compression class PN 10
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Main colour fitting Brass
High tensile strength Yes
Max. operating pressure at 20 °C 10bar
Max. operating pressure at 20 °C (imperial) 145.04psi
With buffer stud No
Capped No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
KIWA certified Yes
Gastec QA mark No
KOMO certified Yes
