VSH Multicon S straight connector (sleeve x male thread)

group: K3220

The VSH Multicon S K3220 is a straight connector with a sleeve- and male thread end. With VSH Multicon S, Aalberts integrated piping systems offers a complete plastic piping system for installing central heating, gas, drinking water, cooling and oil-free compressed air installations. VSH Multicon S provides a complete range of fittings, plastic pipes, valves and tools.

  • Low flow resistance and noise
  • Quick and secure installation
  • Clear visual inspection (Leake Before Pressed)
  • Slim compression sleeve fittings made of dezincification resistant brass
  • Provided with all relevant approvals

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

approvals

KIWA

KIWA

KOMO

KOMO

item number

size

d1

DN1

l1

z1

DN2

l2

z2

item number

0727529

size

14xR1/2"

d1

14.0

DN1

DN10

l1

22

z1

9

DN2

1/2" (DN15)

l2

14

z2

18

item number

0726211

size

16xR1/2"

d1

16.0

DN1

DN12

l1

22

z1

9

DN2

1/2" (DN15)

l2

14

z2

18

item number

0726231

size

16xR3/4"

d1

16.0

DN1

DN12

l1

22

z1

9

DN2

3/4" (DN20)

l2

18

z2

21

item number

0726220

size

20xR1/2"

d1

20.0

DN1

DN15

l1

26

z1

10

DN2

1/2" (DN15)

l2

14

z2

18

item number

0726242

size

20xR3/4"

d1

20.0

DN1

DN15

l1

26

z1

10

DN2

3/4" (DN20)

l2

18

z2

21

item number

0726275

size

26xR1"

d1

26.0

DN1

DN20

l1

32

z1

11

DN2

1" (DN25)

l2

22

z2

25

item number

0726264

size

26xR3/4"

d1

26.0

DN1

DN20

l1

32

z1

11

DN2

3/4" (DN20)

l2

18

z2

21

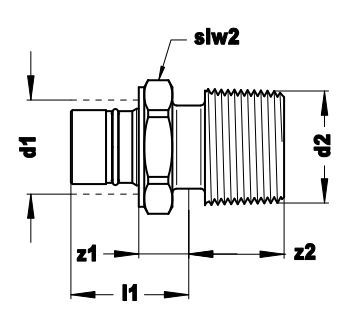

technical drawing for product

characteristics

color

brass

materials

brass

finishing

none

shape

straight, reducer

connection type

sleeve, R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Multicon S

type

K3220

SCIP

3495a54f-f25e-460e-99d9-1886db420b50

label

value

label

Material connection 1

value

Brass

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Slide sleeve

label

Connection 2

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

Main colour fitting

value

Brass

label

Flange compression class (PN)

value

PN 10

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Capped

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

Yes

label

Gastec QA - AR 214 (H2)

value

No
