VSH Multicon S reducer (2 x sleeve)

VSH Multicon S reducer (2 x sleeve)

K3212

The VSH Multicon S K3212 is a straight reducer with 2 sleeve ends. With VSH Multicon S, Aalberts integrated piping systems offers a complete plastic piping system for installing central heating, gas, drinking water, cooling and oil-free compressed air installations. VSH Multicon S provides a complete range of fittings, plastic pipes, valves and tools.

  • Low flow resistance and noise
  • Quick and secure installation
  • Clear visual inspection (Leake Before Pressed)
  • Slim compression sleeve fittings made of dezincification resistant brass
  • Provided with all relevant approvals

applications

potable water heating cooling compressed air

solutions

building installations

approvals

KIWA KOMO
item number size weight dimensions packaging gtin
0727751 16x14 0.03 kg 40x22x22 mm bag (10 pce) 08711985053081
0726297 20x16 0.04 kg 43x26x26 mm bag (10 pce) 08711985051728
0727716 26x20 0.07 kg 51x31x31 mm bag (10 pce) 08711985053098

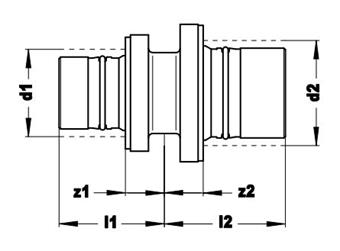

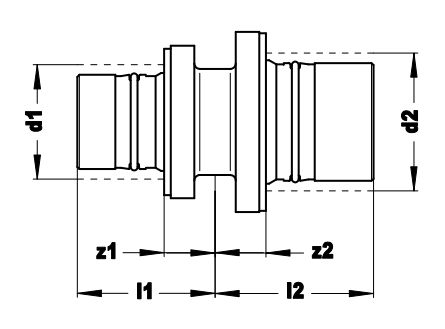

item number size d1 DN1 l1 z1 d2 DN2 l2 z2
0727751 16x14 14.0 DN10 21 8 16.0 DN12 20 8
0726297 20x16 16.0 DN12 20 8 20.0 DN15 23 8
0727716 26x20 20.0 DN15 23 8 26.0 DN20 29 8
see above for the diagram related to these dimensions
color brass
materials brass
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape straight, reducer
connection type sleeve
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 74122000
brand VSH
series Multicon S
type K3212
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Brass
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Brass
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Straight
Reducing Yes
Eccentric No
System specific Yes
Connection 1 Slide sleeve
Connection 2 Slide sleeve
Main colour fitting Brass
Flange compression class PN 10
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud No
High tensile strength Yes
Working length connection 1 7.5mm
Working length connection 1 (imperial) 0.3"
Working length connection 2 7.5mm
Working length connection 2 (imperial) 0.3"
Max. operating pressure at 20 °C 10bar
Max. operating pressure at 20 °C (imperial) 145.04psi
Capped No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified Yes
Gastec QA mark No
KOMO certified Yes

accessories

item number description
0725010 Multicon S sliding sleeve Multilayer tube 20
0725001 Multicon S sliding sleeve Multilayer tube 16
0727694 Multicon S sliding sleeve PEX 16
0725362 Multicon S sliding sleeve Multilayer tube 16 Ni
0725142 Multicon S sliding sleeve Multilayer tube 26
0727309 Multicon S sliding sleeve Multilayer tube 14
0727683 Multicon S sliding sleeve Multilayer tube 14 Ni
