group: H3776
heating
building installations
no approvals available
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 3205831 | G1/2"x 3/4" EK Ni | 0.48 kg | 84x80x35 mm | bag (1 pce) | 08711985114379 |
| color | silver |
|---|---|
| materials | brass |
| finishing | nickel-plated |
| manufacturer | Simplex |
| shape | Perpendicular |
| connection type | G - female thread gas cylindrical (BSPP), euroconus, Eurocone |
| product group | radiator valves (telescopic H) |
|---|---|
| ETIM class | EC010077 Bottom H-block |
| HS code | 84818039 |
| brand | Simplex |
| series | connection block |
| type | H3776 |

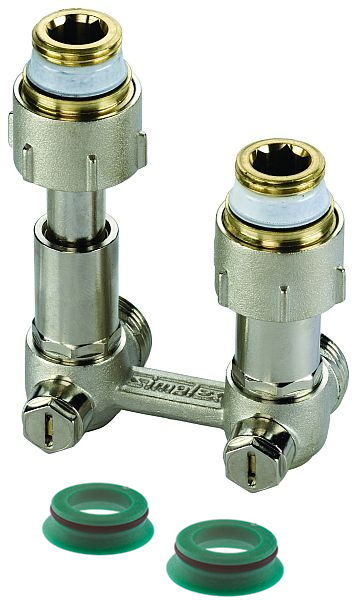

 H3776 image |
png | download |
| label | value |
|---|---|
| ETIM class | EC010077 Bottom H-block |
| Material | Brass |
| Size of radiator connection | 3/4 inch internal thread |
| Size of pipe connection | 1/2 inch |
| Suitable for two pipe system | Yes |
| Suitable for single pipe system | No |
| Surface protection | Nickel-plated |
| Lockable | Yes |
| Thermostatically prepared | No |
| Centre distance, supply/return | 50mm |
| Centre distance, supply/return (imperial) | 1.97" |
| Length | 83.7mm |
