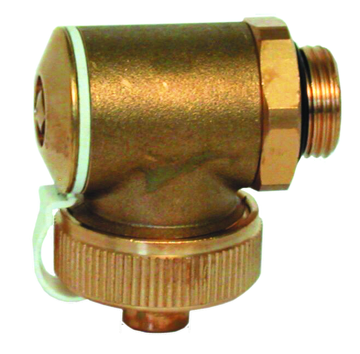

Simplex drain Standard rotatable

Simplex drain Standard rotatable

H3704

  • with O-ring seal



applications

heating cooling

solutions

building installations shipbuilding industry
item number size weight dimensions packaging gtin
3204454 G3/8" 0.15 kg 43x33x45 mm bag (10 pce) 08711985107593
color brass
materials brass
finishing none
manufacturer Simplex
shape End coupling
connection type G - male thread gas cylindrical (BSPP)
sealing EPDM
product group radiator valves (fill and drain valve)
ETIM class EC003023 Fitting with 1 connection
HS code 84818039
brand Simplex
series Radiator appliances
type H3704
label value
ETIM class EC003023 Fitting with 1 connection
Material connection 1 Brass
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
System specific No
Nominal diameter connection 1 3/8 inch (10)
Connection 1 External thread cylindrical BSPP-G (ISO 228-1)
Max. operating pressure at 20 °C 10bar
Max. operating pressure at 20 °C (imperial) 145.04psi
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Main colour fitting Brass
Length of connection 1 42.5mm
Length of connection 1 (imperial) 1.67"
Working length connection 1 7mm
Working length connection 1 (imperial) 0.28"
Medium temperature (continuous) 0°C - 110°C
Medium temperature (continuous) (imperial) 32°F - 230°F
With sealing rings/gaskets Yes
With drain valve Yes
Capped Yes
FM quality mark No
UL quality mark No
ULC quality mark No
LPCB quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
KIWA certified No
Gastec QA mark No
KOMO certified No
