G7126
The VSH XPress G7126 is a copper reduced T-piece with 3 press ends, applicable for Gas. The yellow O-ring and clear marking on the fitting ensures a clear identification of the system. VSH XPress provides a complete piping system suitable for every conceivable application.
applications
solutions
approvals
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 4804217 | 22x15x22 | 0.14 kg | 30x55x80 mm | bag (5 pce) | 05022050039460 |
| item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | d3 | DN3 | l3 | z3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4804217 | 22x15x22 | 22.0 | DN20 | 37 | 16 | 22.0 | DN20 | 37 | 16 | 15.0 | DN12 | 46 | 26 |
| color | copper |
|---|---|
| materials | copper (CW024A (UNS C12200)) |
| finishing | none |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | T-piece, reducer (90º) |
| connection type | press (M), Press (M) |
| sealing | NBR (Nitrile) |
| product group | fittings |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| HS code | 74122000 |
| brand | VSH |
| series | XPress Copper Gas |
| type | G7126 |
| UNSPS | 40174612 |
 G7126 image |
png | download |
VSH XPress Copper Gas Gastec H2 certifications |
download | |
XPress Copper BSI certifications |
download | |
XPress Copper DVGW Gas certifications |
download | |
XPress Copper KIWA GASTEC certifications |
download | |
XPress Koper Gas ARGB-KVBG certifications |
download | |
XPress_Copper_Water_OVGW certifications |
download | |

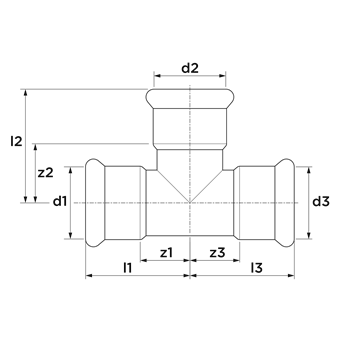

 Diagram diagram |
png | download |
VSH XPress installation instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| Material connection 1 | Copper |
| Material quality connection 1 | Cu-DHP (CW024A) |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Copper |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Material connection 3 | Copper |
| Material quality connection 3 | Cu-DHP (CW024A) |
| Surface protection connection 3 | Untreated |
| Surface treatment connection 3 | Untreated |
| Model | T-piece |
| Angle | 90° |
| Reducing | Yes |
| Multi-part | No |
| System specific | Yes |
| Nominal diameter connection 1 | DN 20 |
| Outer pipe diameter connection 1 | 22mm |
| Outer pipe diameter connection 1 (imperial) | 0.87" |
| Wall thickness, connection 1 | 1.4mm |
| Connection 1 | Press sleeve |
| Contour code connection 1 | M |
| Nominal diameter connection 2 | DN 20 |
| Outer pipe diameter connection 2 | 22mm |
| Outer pipe diameter connection 2 (imperial) | 0.87" |
| Wall thickness, connection 2 | 1.4mm |
| Connection 2 | Press sleeve |
| Contour code connection 2 | M |
| Nominal diameter connection 3 | DN 12 |
| Outer pipe diameter connection 3 | 15mm |
| Outer pipe diameter connection 3 (imperial) | 0.59" |
| Wall thickness, connection 3 | 1.3mm |
| Connection 3 | Press sleeve |
| Contour code connection 3 | M |
| Material sealing | NBR (nitrile rubber) |
| Length of connection 1 | 37mm |
| Length of connection 1 (imperial) | 1.46" |
| Working length connection 1 | 16mm |
| Working length connection 1 (imperial) | 0.63" |
| High tensile strength | Yes |
| Length of connection 2 | 37mm |
| Length of connection 2 (imperial) | 1.46" |
| Working length connection 2 | 16mm |
| Working length connection 2 (imperial) | 0.63" |
| Length of connection 3 | 46mm |
| Length of connection 3 (imperial) | 1.81" |
| Working length connection 3 | 26mm |
| Working length connection 3 (imperial) | 1.02" |
| Medium temperature (continuous) | -20°C - 70°C |
| Medium temperature (continuous) (imperial) | -4°F - 158°F |
| With sealing rings/gaskets | No |
| With de-aerator | No |
| With thermal insulation | No |
| With buffer stud | Yes |
| Capped | No |
| With connection indicator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| DIN-CERTCO certificate | No |
| VdS quality mark | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | Yes |
| DVGW quality mark for water | No |
| KIWA certified | No |
| Gastec QA mark | Yes |
| KOMO certified | No |
| Type approval according to BBR/EKS | No |
