VSH XPress Copper Gas crossover (2 x press)

group: G7085

The VSH XPress G7085 is a copper crossover with a 2 press ends, applicable for Gas. The yellow O-ring and clear marking on the fitting ensures a clear identification of the system. VSH XPress provides a complete piping system suitable for every conceivable application.

  • safer installation due to no naked flames or heat required
  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

natural gas

natural gas

hydrogen (H2)

hydrogen (H2)

segments

residential

residential

commercial building

commercial building

industry

industry

approvals

ARGB-KVBG

ARGB-KVBG

BSI Kitemark

BSI Kitemark

DVGW Gas

DVGW Gas

GASTEC

GASTEC

Gastec-H2-ready

Gastec-H2-ready

ÖVGW Gas

ÖVGW Gas

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

4804041

size

15

d1

15.0

DN1

DN12

l1

70

z1

50

d2

15.0

DN2

DN12

l2

70

z2

50

item number

4804063

size

22

d1

22.0

DN1

DN20

l1

85

z1

64

d2

22.0

DN2

DN20

l2

85

z2

64

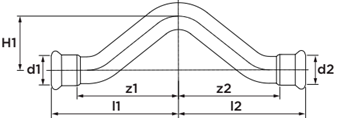

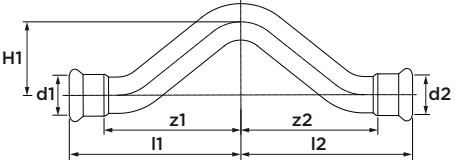

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

Jump

connection type

press (M)

sealing

NBR (Nitrile)

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

XPress Copper Gas

type

G7085

label

value

label

Material connection 1

value

Copper

label

Material quality connection 1

value

Cu-DHP (CW024A)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Copper

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Offset

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

M

label

Connection 2

value

Press sleeve

label

Contour code connection 2

value

M

label

Main colour fitting

value

Copper

label

Material sealing

value

NBR (nitrile rubber)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-20°C - 70°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 158°F

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

Yes

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

Yes

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

Yes

label

Type approval according to BBR/EKS

value

No
