group: G3242
natural gas
commercial building
GASTEC
item number
size
dimensions
weight
packaging
gtin
item number
size
20x16x16
dimensions
64x50x26 mm
weight
0.1 kg
packaging
bag (10 pce)
gtin
08711985279115
item number
size
20x16x20
dimensions
66x50x26 mm
weight
0.1 kg
packaging
bag (10 pce)
gtin
08711985082432
item number
size
20x20x16
dimensions
68x53x26 mm
weight
0.11 kg
packaging
bag (10 pce)
gtin
08711985082456
item number
size
26x16x20
dimensions
73x50x31 mm
weight
0.12 kg
packaging
bag (10 pce)
gtin
08711985082470
item number
size
26x16x26
dimensions
78x54x31 mm
weight
0.14 kg
packaging
bag (10 pce)
gtin
08711985144994

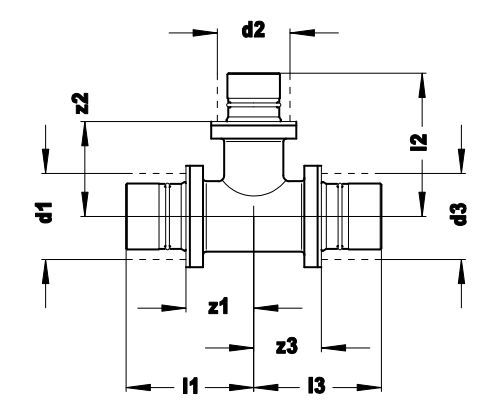

item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
item number
0796653size
20x16x16
d1
16.0
DN1
DN15
l1
31
z1
19
d2
16.0
DN2
DN12
l2
37
z2
25
d3
20.0
DN3
DN12
l3
33
z3
17
item number
0796611size
20x16x20
d1
20.0
DN1
DN15
l1
33
z1
18
d2
16.0
DN2
DN12
l2
37
z2
25
d3
20.0
DN3
DN15
l3
33
z3
18
item number
0796620size
20x20x16
d1
16.0
DN1
DN15
l1
33
z1
20
d2
20.0
DN2
DN15
l2
40
z2
25
d3
20.0
DN3
DN12
l3
35
z3
19
item number
0796631size
26x16x20
d1
20.0
DN1
DN20
l1
34
z1
19
d2
16.0
DN2
DN12
l2
39
z2
26
d3
26.0
DN3
DN15
l3
39
z3
18
item number
0796708size
26x16x26
d1
26.0
DN1
DN20
l1
39
z1
18
d2
16.0
DN2
DN12
l2
39
z2
26
d3
26.0
DN3
DN20
l3
39
z3
18
color
brass
materials
brass
finishing
none
manufacturer
Aalberts integrated piping systems B.V. (VSH)
shape
T-piece, reducer (90º)
connection type
sleeve
sealing
NBR (Nitrile)
product group
fittings
ETIM class
EC003025 Fitting with 3 connections
HS code
74122000
brand
VSH
series
Multicon S Gas
type
G3242
SCIP
3495a54f-f25e-460e-99d9-1886db420b50
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Brass
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
Yes
label
Multi-part
value
No
label
System specific
value
Yes
label
Connection 1
value
Slide sleeve
label
Connection 2
value
Slide sleeve
label
Connection 3
value
Slide sleeve
label
Material sealing
value
NBR (nitrile rubber)
label
Main colour fitting
value
Brass
label
High tensile strength
value
Yes
label
Max. operating pressure at 20 °C
value
0.5bar
label
Max. operating pressure at 20 °C (imperial)
value
7.25psi
label
With buffer stud
value
No
label
Capped
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
Yes
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
