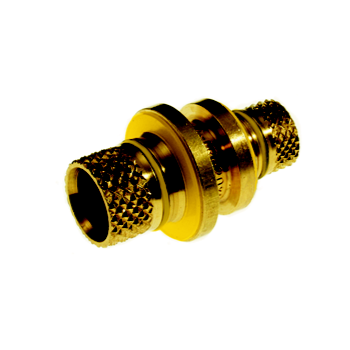

Product Image for VSH Multicon S Gas reducer (2 x sleeve)

group: G3212

The VSH Multicon S Gas G3212 is a straight reducer coupling with 2 sleeve connections, applicable for gas. With VSH Multicon S, Aalberts integrated piping systems offers a complete plastic piping system for installing central heating, gas, drinking water, cooling and oil-free compressed air installations. VSH Multicon S provides a complete range of fittings, plastic pipes, valves and tools.

Low flow resistance and noise
Quick and secure installation
Clear visual inspection (Leake Before Pressed)
Slim compression sleeve fittings made of dezincification resistant brass
Provided with all relevant approvals

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

natural gas

show all

show less

commercial building

show all

show less

GASTEC

show all

show less

item number

size

dimensions

weight

packaging

gtin

item number

size

20x16

dimensions

43x26x26 mm

weight

0.04 kg

packaging

bag (10 pce)

gtin

08711985082142

item number

size

26x20

dimensions

51x31x31 mm

weight

0.07 kg

packaging

bag (10 pce)

gtin

08711985082166

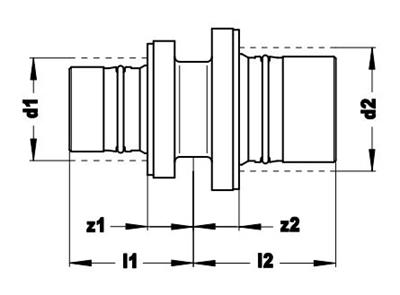

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

0796389

size

20x16

d1

16.0

DN1

DN12

l1

20

z1

8

d2

20.0

DN2

DN15

l2

23

z2

8

item number

0796391

size

26x20

d1

20.0

DN1

DN15

l1

23

z1

8

d2

26.0

DN2

DN20

l2

29

z2

8

characteristics

color

brass

materials

brass

finishing

none

shape

straight, reducer

connection type

sleeve

sealing

NBR (Nitrile)

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Multicon S Gas

type

G3212

SCIP

3495a54f-f25e-460e-99d9-1886db420b50

image for G3212

image | png

G3212

image for Diagram

diagram | jpg

Diagram

label

value

label

ETIM class

value

EC003024 Fitting with 2 connections

label

Material connection 1

value

Brass

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Reducing

value

Yes

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Slide sleeve

label

Connection 2

value

Slide sleeve

label

Main colour fitting

value

Brass

label

Material sealing

value

NBR (nitrile rubber)

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

Working length connection 1

value

7.5mm

label

Working length connection 1 (imperial)

value

0.3"

label

Working length connection 2

value

7.5mm

label

Working length connection 2 (imperial)

value

0.3"

label

Max. operating pressure at 20 °C

value

0.5bar

label

Max. operating pressure at 20 °C (imperial)

value

7.25psi

label

Capped

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

Yes

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
