CB insulation clip

Product Image for CB insulation clip
Product Image for CB insulation clip

group: CB

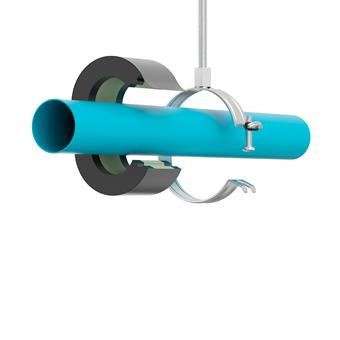

For mounting pipework with an elastomer insulation to the wall or ceiling to prevent thermal losses.
  • Easy to bond with pipework insulation. No thermal bridge.
  • All clips are fitted with two cross head screws.
  • Clips fitted with quick-locking system and bolts designed not to fall out during installation: all sizes except 114-4".
  • Clips fitted with retaining ring: CB 13 x 114-4" and CB 19 x 114-4".
