VSH XPress Carbon straight union (press x female thread)

VSH XPress Carbon straight union (press x female thread)

C1444

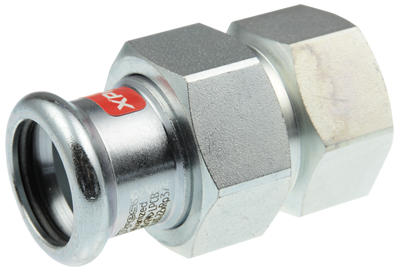

The VSH XPress C1444 is a carbon steel straight union connector with a press and a female thread end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension

applications

heating cooling compressed air solar energy sprinkler vacuum

solutions

building installations shipbuilding fire protection

approvals

ATG Bureau Veritas CNBOP DNV-GL Lloyds Register LPCB QB (CSTBat) RINA RISE SBSC SPF UL ULc VdS
item number size weight dimensions packaging gtin
6208906 15xRp1/2" 0.14 kg 59x31x31 mm bag (2 pce) 08711985254174
6208917 18xRp1/2" 0.14 kg 59x31x31 mm bag (2 pce) 08711985254198
6208928 22xRp3/4" 0.21 kg 63x39x39 mm bag (2 pce) 08711985254211
6208939 28xRp1" 0.33 kg 65x49x49 mm bag (2 pce) 08711985254235
6208941 35xRp1 1/4" 0.44 kg 76x58x58 mm bag (2 pce) 08711985254259
6208950 42xRp1 1/2" 0.51 kg 83x64x64 mm bag (2 pce) 08711985254273
6208961 54xRp2" 0.89 kg 93x81x81 mm bag (2 pce) 08711985254297
item number size d1 DN1 l1 z1 slw1 d2 DN2 l2 z2 slw2
6208906 15xRp1/2" 15.0 DN12 29 9 30 21.3 1/2" (DN15) 30 15 27
6208917 18xRp1/2" 18.0 DN15 29 9 30 21.3 1/2" (DN15) 30 15 27
6208928 22xRp3/4" 22.0 DN20 30 9 36 26.9 3/4" (DN20) 33 17 34
6208939 28xRp1" 28.0 DN25 31 8 46 33.7 1" (DN25) 34 15 42
6208941 35xRp1 1/4" 35.0 DN32 34 8 52 42.4 1 1/4" (DN32) 42 20 50
6208950 42xRp1 1/2" 42.0 DN40 41 11 58 48.3 1 1/2" (DN40) 42 20 55
6208961 54xRp2" 54.0 DN50 47 12 75 60.3 2" (DN50) 46 20 70

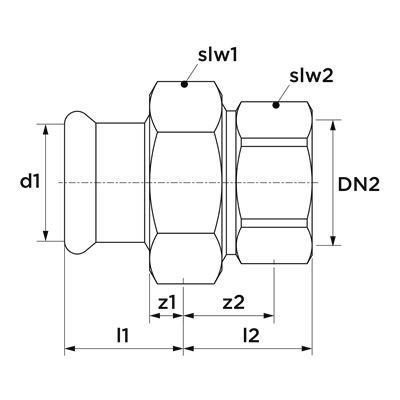

see above for the diagram related to these dimensions
color silver
materials steel (St 34.2 (1.0034))
finishing galvanised
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape straight
connection type press (M), Rp - female thread cylindrical (BSPT)
sealing EPDM
product group fittings (union)
ETIM class EC003024 Fitting with 2 connections
HS code 73079980
country of origin Netherlands
brand VSH
series XPress Carbon
type C1444
SCIP 233056dc-cd46-44db-9410-a4845109c0f6
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Steel
Material quality connection 1 St 34.2 (1.0034)
Surface protection connection 1 Galvanic/electrolytic zinc plated
Material connection 2 Steel
Material quality connection 2 St 34.2 (1.0034)
Surface protection connection 2 Galvanic/electrolytic zinc plated
Shape Straight
Model 3-part
Reducing No
Eccentric No
System-specific Yes
Wall thickness, connection 1 1.5mm
Connection 1 Press sleeve
Contour code connection 1 M
Connection 2 Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
Main colour fitting Grey
Flange compression class PN 16
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud Yes
High tensile strength Yes
Medium temperature (continuous) -35°C - 135°C
Medium temperature (continuous) (imperial) -31°F - 275°F
Max. operating pressure at 20 °C 16bar
Max. operating pressure at 20 °C (imperial) 232.06psi
With thermal insulation No
With sealing rings/gaskets Yes
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark No
DIN-CERTCO certificate No
With approval for TÜV No
DVGW quality mark for gas No
DVGW quality mark for water No
KIWA certified No
Gastec QA mark No
KOMO certified No
Type approval according to BBR/EKS No
