group: C1433
The VSH XPress C1433 is a straight carbon steel connector with a tube and female thread end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
heating
cooling
compressed air
solar energy
vacuum
residential
fire protection
commercial building
industry
shipbuilding
ATG
Bureau Veritas
CNBOP
DNV-GL
Lloyds Register
LPCB
QB (CSTBat)
RINA
RISE
SBSC
SPF
VdS
item number
size
dimensions
weight
packaging
gtin
item number
size
12xRp3/8"
dimensions
42x22x22 mm
weight
0.1 kg
packaging
bag (10 pce)
gtin
08711985164145
item number
size
12xRp1/2"
dimensions
49x28x28 mm
weight
0.05 kg
packaging
bag (10 pce)
gtin
08711985097016
item number
size
15xRp1/2"
dimensions
51x28x28 mm
weight
0.05 kg
packaging
bag (10 pce)
gtin
08711985097030
item number
size
18xRp1/2"
dimensions
50x28x28 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
08711985097054
item number
size
18xRp3/4"
dimensions
53x35x35 mm
weight
0.08 kg
packaging
bag (10 pce)
gtin
08711985097078
item number
size
22xRp1/2"
dimensions
50x28x28 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
08711985097092
item number
size
22xRp3/4"
dimensions
53x35x35 mm
weight
0.08 kg
packaging
bag (10 pce)
gtin
08711985097115
item number
size
d1
DN1
l1
d2
DN2
l2
z2
slw2
item number
6209874size
12xRp3/8"
d1
12.0
DN1
DN10
l1
35
d2
17.2
DN2
3/8" (DN10)
l2
17
z2
6
slw2
19
item number
6202427size
12xRp1/2"
d1
12.0
DN1
DN10
l1
35
d2
21.3
DN2
1/2" (DN15)
l2
24
z2
9
slw2
24
item number
6202438size
15xRp1/2"
d1
15.0
DN1
DN12
l1
38
d2
21.3
DN2
1/2" (DN15)
l2
23
z2
8
slw2
24
item number
6202449size
18xRp1/2"
d1
18.0
DN1
DN15
l1
38
d2
21.3
DN2
1/2" (DN15)
l2
22
z2
7
slw2
24
item number
6202451size
18xRp3/4"
d1
18.0
DN1
DN15
l1
38
d2
26.9
DN2
3/4" (DN20)
l2
25
z2
9
slw2
30
item number
6202460size
22xRp1/2"
d1
22.0
DN1
DN20
l1
39
d2
21.3
DN2
1/2" (DN15)
l2
21
z2
6
slw2
24
item number
6202471size
22xRp3/4"
d1
22.0
DN1
DN20
l1
39
d2
26.9
DN2
3/4" (DN20)
l2
24
z2
8
slw2
30
color
silver
materials
steel (St 34.2 (1.0034))
finishing
galvanised
shape
straight, reducer
connection type
tube end, Rp - female thread cylindrical (BSPT)
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
73079980
brand
VSH
series
XPress Carbon
type
C1433
UNSPS
40171702
SCIP
233056dc-cd46-44db-9410-a4845109c0f6
image | png
C1433

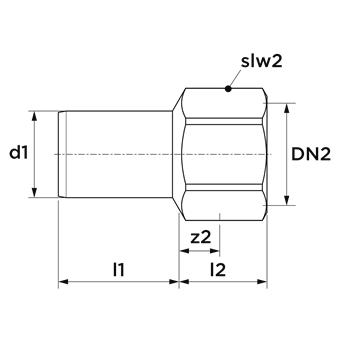

diagram | png
Diagram
certifications | pdf
ATG3056_XPress_Carbon_F
Environmental Product Declaration | pdf
EPD VSH XPress Carbon
link to sheet | pdf
SDS VSH XPress Carbon
certifications | pdf
VSH XPress Carbon LPCB
certifications | pdf
VSH XPress Carbon Lloyds Register
certifications | pdf
VSH XPress Carbon SBSC
certifications | pdf
VSH XPress Carbon SPF
certifications | pdf
VSH XPress QB
installation- & maintenance document | pdf
VSH XPress installation instructions
certifications | pdf
VSH _XPress_VdS
certifications | pdf
VSH_XPress_Galvanized_RINA
certifications | pdf
VSH_XPress_carbon_RISE
certifications | pdf
ATG3056_XPress_Carbon
certifications | pdf
VSH XPress Carbon&Stainless Bureau Veritas
label
value
label
ETIM class
label
Material connection 1
value
Steel
label
Material quality connection 1
value
St 34.2 (1.0034)
label
Surface protection connection 1
value
Galvanic/electrolytic zinc plated
label
Material connection 2
value
Steel
label
Material quality connection 2
value
St 34.2 (1.0034)
label
Surface protection connection 2
value
Galvanic/electrolytic zinc plated
label
Shape
value
Straight
label
Model
value
1-part
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Spigot/tube end
label
Connection 2
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Grey
label
Flange compression class (PN)
value
PN 16
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-35°C - 135°C
label
Medium temperature (continuous) (imperial)
value
-31°F - 275°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
item number
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
item number
6209874carbon footprint (A1-A3) cradle-to-gate
0.29kgCO2e
carbon footprint (A-C) embodied carbon
0.32kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.21kgCO2e
data source
EPD
item number
6202427carbon footprint (A1-A3) cradle-to-gate
0.15kgCO2e
carbon footprint (A-C) embodied carbon
0.16kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.1kgCO2e
data source
EPD
item number
6202438carbon footprint (A1-A3) cradle-to-gate
0.15kgCO2e
carbon footprint (A-C) embodied carbon
0.17kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.11kgCO2e
data source
EPD
item number
6202449carbon footprint (A1-A3) cradle-to-gate
0.17kgCO2e
carbon footprint (A-C) embodied carbon
0.18kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.12kgCO2e
data source
EPD
item number
6202451carbon footprint (A1-A3) cradle-to-gate
0.24kgCO2e
carbon footprint (A-C) embodied carbon
0.25kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.17kgCO2e
data source
EPD
item number
6202460carbon footprint (A1-A3) cradle-to-gate
0.18kgCO2e
carbon footprint (A-C) embodied carbon
0.19kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.13kgCO2e
data source
EPD
item number
6202471carbon footprint (A1-A3) cradle-to-gate
0.25kgCO2e
carbon footprint (A-C) embodied carbon
0.26kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.17kgCO2e
data source
EPD
