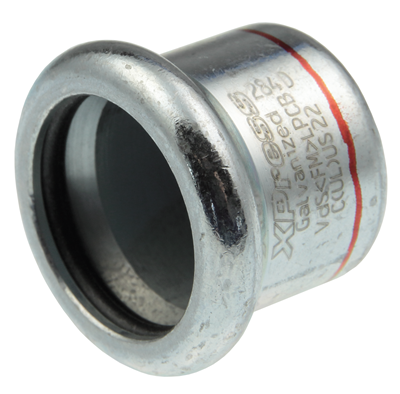

The VSH XPress C1429 is a carbon steel stop end with a press end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
heating
cooling
compressed air
solar energy
sprinkler
vacuum
building installations
shipbuilding
fire protection
ATG
Bureau Veritas
CNBOP
DNV-GL
Lloyds Register
LPCB
QB (CSTBat)
RINA
RISE
SBSC
SPF
VdS
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 6202955 | 15 | 0.02 kg | 23x23x23 mm | bag (20 pce) | 08711985095333 |
| 6202966 | 18 | 0.02 kg | 23x27x27 mm | bag (20 pce) | 08711985095357 |
| 6202977 | 22 | 0.04 kg | 24x32x32 mm | bag (10 pce) | 08711985095371 |
| 6202988 | 28 | 0.05 kg | 26x38x38 mm | bag (10 pce) | 08711985095395 |
| 6202999 | 35 | 0.06 kg | 29x45x45 mm | bag (5 pce) | 08711985095418 |
| 6203001 | 42 | 0.1 kg | 37x54x54 mm | bag (4 pce) | 08711985095432 |
| 6203010 | 54 | 0.15 kg | 42x65x65 mm | bag (4 pce) | 08711985095456 |
| 6340171 | 66.7 | 0.3 kg | 60x83x83 mm | bag (1 pce) | 08711985292206 |
| 6206915 | 76.1 | 0.43 kg | 64x95x95 mm | bag (2 pce) | 08711985157611 |
| 6206926 | 88.9 | 0.55 kg | 72x110x110 mm | bag (2 pce) | 08711985157628 |
| 6206937 | 108 | 0.74 kg | 97x133x133 mm | bag (2 pce) | 08711985157635 |

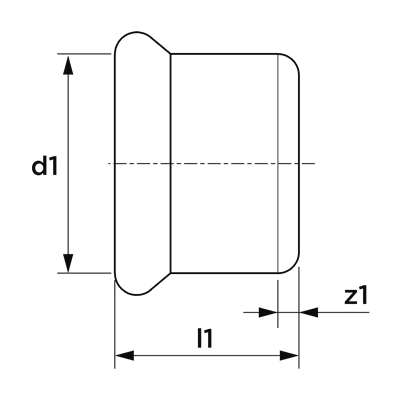

| item number | size | d1 | DN1 | l1 | z1 |
|---|---|---|---|---|---|
| 6202955 | 15 | 15.0 | DN12 | 23 | 3 |
| 6202966 | 18 | 18.0 | DN15 | 23 | 3 |
| 6202977 | 22 | 22.0 | DN20 | 24 | 3 |
| 6202988 | 28 | 28.0 | DN25 | 26 | 3 |
| 6202999 | 35 | 35.0 | DN32 | 29 | 3 |
| 6203001 | 42 | 42.0 | DN40 | 37 | 7 |
| 6203010 | 54 | 54.0 | DN50 | 42 | 7 |
| 6340171 | 66.7 | 66.7 | DN65 | 60 | 10 |
| 6206915 | 76.1 | 76.1 | DN65 | 64 | 9 |
| 6206926 | 88.9 | 88.9 | DN80 | 72 | 9 |
| 6206937 | 108 | 108.0 | DN100 | 97 | 20 |
| color | silver |
|---|---|
| materials | steel (St 34.2 (1.0034)) |
| finishing | galvanised |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | End coupling |
| connection type | press (M) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003023 Fitting with 1 connection |
| HS code | 73079980 |
| brand | VSH |
| series | XPress Carbon |
| type | C1429 |
ATG3056_XPress_Carbon_F certifications |
download | |
 C1429 image |
png | download |
EPD VSH XPress Carbon Environmental Product Declaration |
download | |
SDS VSH XPress Carbon link to sheet |
download | |
VSH XPress Carbon LPCB certifications |
download | |
VSH XPress Carbon Lloyds Register certifications |
download | |
VSH XPress Carbon SBSC certifications |
download | |
VSH XPress Carbon SPF certifications |
download | |
VSH XPress QB certifications |
download | |
VSH _XPress_VdS certifications |
download | |
VSH_XPress_Galvanized_RINA certifications |
download | |
VSH_XPress_carbon_RISE certifications |
download | |
ATG3056_XPress_Carbon certifications |
download | |
 Diagram diagram |
png | download |
VSH XPress Carbon&Stainless Bureau Veritas certifications |
download | |
VSH XPress installation instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003023 Fitting with 1 connection |
| Material connection 1 | Steel |
| Material quality connection 1 | St 34.2 (1.0034) |
| Surface protection connection 1 | Galvanic/electrolytic zinc plated |
| System specific | Yes |
| Connection 1 | Press sleeve |
| Max. operating pressure at 20 Ā°C | 16bar |
| Max. operating pressure at 20 Ā°C (imperial) | 232.06psi |
| Contour code | M |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| Main colour fitting | Grey |
| Medium temperature (continuous) | -35Ā°C - 135Ā°C |
| Medium temperature (continuous) (imperial) | -31Ā°F - 275Ā°F |
| With sealing rings/gaskets | No |
| With drain valve | No |
| With de-aerator | No |
| Capped | No |
| With connection indicator | No |
| FM quality mark | No |
| UL quality mark | No |
| ULC quality mark | No |
| DIN-CERTCO certificate | No |
| With approval for TĆV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
| Type approval according to BBR/EKS | No |
| item number | description | |
|---|---|---|
 |
6222216 | VSH XPress Carbon+Stainless O-ring EPDM LBP 15 |
 |
6119401 | VSH XPress Carbon+Stainless O-ring FPM LBP 15 |
 |
6212646 | VSH XPress C+S insert depth marker 12-108 |
 |
6211898 | Deburrer for carbon and stainless steel tube 12-54 |
 |
6340708 | VSH SudoXPress Carbon galvanized tube+PP 15x1.2 small bundle |
|
6204682 | VSH SudoXPress Carbon galvanized tube+PP coating 15x1.2 |
 |
6209931 | VSH SudoXPress Carbon galvanized tube 15x1.2 (l=6m) small bundle |
|
6206277 | VSH SudoXPress Carbon galvanized tube 15x1.2 (l=3m) |
|
6205155 | VSH SudoXPress Carbon galvanized tube 15x1.2 (l=6m) |
|
6119410 | VSH XPress Carbon+Stainless O-ring FPM LBP 18 |
|
6222227 | VSH XPress Carbon+Stainless O-ring EPDM LBP 18 |
|
6340719 | VSH SudoXPress Carbon galvanized tube+PP 18x1.2 small bundle |
|
6204693 | VSH SudoXPress Carbon galvanized tube+PP coating 18x1.2 |
|
6205166 | VSH SudoXPress Carbon galvanized tube 18x1.2 (l=6m) |
|
6206288 | VSH SudoXPress Carbon galvanized tube 18x1.2 (l=3m) |
|
6209940 | VSH SudoXPress Carbon galvanized tube 18x1.2 (l=6m) small bundle |
|
6119421 | VSH XPress Carbon+Stainless O-ring FPM LBP 22 |
|
6222238 | VSH XPress Carbon+Stainless O-ring EPDM LBP 22 |
 |
6340004 | VSH XPress Carbon Sendzimir galvanized tube 22x1.5 small bundle |
|
6241114 | VSH XPress Carbon Sendzimir galvanized tube 22x1.5 |
|
6340721 | VSH SudoXPress Carbon galvanized tube+PP 22x1.5 small bundle |
|
6204704 | VSH SudoXPress Carbon galvanized tube+PP coating 22x1.5 |
|
6205177 | VSH SudoXPress Carbon galvanized tube 22x1.5 (l=6m) |
|
6206299 | VSH SudoXPress Carbon galvanized tube 22x1.5 (l=3m) |
|
6209951 | VSH SudoXPress Carbon galvanized tube 22x1.5 (l=6m) small bundle |
|
6222249 | VSH XPress Carbon+Stainless O-ring EPDM LBP 28 |
|
6119432 | VSH XPress Carbon+Stainless O-ring FPM LBP 28 |
|
6340015 | VSH XPress Carbon Sendzimir galvanized tube 28x1.5 small bundle |
|
6241125 | VSH XPress Carbon Sendzimir galvanized tube 28x1.5 |
|
6340730 | VSH SudoXPress Carbon galvanized tube+PP 28x1.5 small bundle |
|
6204715 | VSH SudoXPress Carbon galvanized tube+PP coating 28x1.5 |
|
6205188 | VSH SudoXPress Carbon galvanized tube 28x1.5 (l=6m) |
|
6206301 | VSH SudoXPress Carbon galvanized tube 28x1.5 (l=3m) |
|
6209962 | VSH SudoXPress Carbon galvanized tube 28x1.5 l=6m) small bundle |
|
6222251 | VSH XPress Carbon+Stainless O-ring EPDM LBP 35 |
|
6119443 | VSH XPress Carbon+Stainless O-ring FPM LBP 35 |
|
6340026 | VSH XPress Carbon Sendzimir galvanized tube 35x1.5 small bundle |
|
6241136 | VSH XPress Carbon Sendzimir galvanized tube 35x1.5 |
|
6340741 | VSH SudoXPress Carbon galvanized tube+PP 35x1.5 small bundle |
|
6204726 | VSH SudoXPress Carbon galvanized tube+PP coating 35x1.5 |
|
6205199 | VSH SudoXPress Carbon galvanized tube 35x1.5 (l=6m) |
|
6206310 | VSH SudoXPress Carbon galvanized tube 35x1.5 (l=3m) |
|
6203923 | VSH SudoXPress Carbon galvanized tube 35x1.5 (l=6m) small bundle |
|
6119454 | VSH XPress Carbon+Stainless O-ring FPM LBP 42 |
|
6222260 | VSH XPress Carbon+Stainless O-ring EPDM LBP 42 |
|
6340037 | VSH XPress Carbon Sendzimir galvanized tube 42x1.5 small bundle |
|
6241147 | VSH XPress Carbon Sendzimir galvanized tube 42x1.5 |
|
6340752 | VSH SudoXPress Carbon galvanized tube+PP 42x1.5 small bundle |
|
6204737 | VSH SudoXPress Carbon galvanized tube+PP coating 42x1.5 |
|
6205201 | VSH SudoXPress Carbon galvanized tube 42x1.5 (l=6m) |
|
6206321 | VSH SudoXPress Carbon galvanized tube 42x1.5 (l=3m) |
|
6203934 | VSH SudoXPress Carbon galvanized tube 42x1.5 (l=6m) small bundle |
|
6119465 | VSH XPress Carbon+Stainless O-ring FPM LBP 54 |
|
6222271 | VSH XPress Carbon+Stainless O-ring EPDM LBP 54 |
|
6340048 | VSH XPress Carbon Sendzimir galvanized tube 54x1.5 small bundle |
|
6241158 | VSH XPress Carbon Sendzimir galvanized tube 54x1.5 |
|
6340763 | VSH SudoXPress Carbon galvanized tube+PP 54x1.5 small bundle |
|
6204748 | VSH SudoXPress Carbon galvanized tube+PP coating 54x1.5 |
|
6205221 | VSH SudoXPress Carbon galvanized tube 54x1.5 (l=6m) |
|
6206332 | VSH SudoXPress Carbon galvanized tube 54x1.5 (l=3m) |
|
6203945 | VSH SudoXPress Carbon galvanized tube 54x1.5 (l=6m) small bundle |
 |
6208015 | VSH XPress Carbon+Stainless O-ring EPDM 76.1 |
 |
6119377 | VSH XPress Carbon+Stainless O-ring FPM 76.1 |
|
6340059 | VSH XPress Carbon Sendzimir galvanized tube 76.1x2.0 small bundle |
|
6241378 | VSH XPress Carbon Sendzimir galvanized tube 76.1x2.0 |
|
6204803 | VSH SudoXPress Carbon galvanized tube 76.1x2.0 (l=6m) |
|
6203956 | VSH SudoXPress Carbon galvanized tube 76.1x2.0 (l=6m) small bundle |
|
6208026 | VSH XPress Carbon+Stainless O-ring EPDM 88.9 |
|
6119388 | VSH XPress Carbon+Stainless O-ring FPM 88.9 |
|
6340061 | VSH XPress Carbon Sendzimir galvanized tube 88.9x2.0 small bundle |
|
6241389 | VSH XPress Carbon Sendzimir galvanized tube 88.9x2.0 |
|
6204814 | VSH SudoXPress Carbon galvanized tube 88.9x2.0 (l=6m) |
|
6203967 | VSH SudoXPress Carbon galvanized tube 88.9x2.0 (l=6m) small bundle |
|
6208037 | VSH XPress Carbon+Stainless O-ring EPDM 108 |
|
6119399 | VSH XPress Carbon+Stainless O-ring FPM 108 |
|
6340070 | VSH XPress Carbon Sendzimir galvanized tube 108x2.0 small bundle |
|
6241391 | VSH XPress Carbon Sendzimir galvanized tube 108x2.0 |
|
6204825 | VSH SudoXPress Carbon galvanized tube 108x2.0 (l=6m) |
|
6203978 | VSH SudoXPress Carbon galvanized tube 108x2.0 (l=6m) small bundle |
|
6204836 | VSH SudoXPress Carbon galvanized tube 66.7x1.5 (l=6m) |
|
6208972 | VSH SudoXPress Carbon galvanized tube 66.7x1.5 (l=6m) small bundle |
| item number | description | ||
|---|---|---|---|
|
6222216 | VSH XPress Carbon+Stainless O-ring EPDM LBP 15 | 1 |
|
6222227 | VSH XPress Carbon+Stainless O-ring EPDM LBP 18 | 1 |
|
6222238 | VSH XPress Carbon+Stainless O-ring EPDM LBP 22 | 1 |
|
6222249 | VSH XPress Carbon+Stainless O-ring EPDM LBP 28 | 1 |
|
6222251 | VSH XPress Carbon+Stainless O-ring EPDM LBP 35 | 1 |
|
6222260 | VSH XPress Carbon+Stainless O-ring EPDM LBP 42 | 1 |
|
6222271 | VSH XPress Carbon+Stainless O-ring EPDM LBP 54 | 1 |
|
6208015 | VSH XPress Carbon+Stainless O-ring EPDM 76.1 | 1 |
|
6208026 | VSH XPress Carbon+Stainless O-ring EPDM 88.9 | 1 |
|
6208037 | VSH XPress Carbon+Stainless O-ring EPDM 108 | 1 |
|
6208180 | VSH XPress Carbon O-ring EPDM 66.7 | 1 |
