C1409
The VSH XPress C1409 is a carbon steel 90º angle adapter with a press and female thread end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
applications
solutions
approvals
| color | silver |
|---|---|
| materials | steel (St 34.2 (1.0034)) |
| finishing | galvanised |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | Elbow, reducer (90º) |
| connection type | press (M), Rp - female thread cylindrical (BSPT) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| HS code | 73079980 |
| brand | VSH |
| series | XPress Carbon |
| type | C1409 |
| UNSPS | 40172812 |
| SCIP | 233056dc-cd46-44db-9410-a4845109c0f6 |
ATG3056_XPress_Carbon_F certifications |
download | |
 C1409 image |
png | download |
EPD-VSH-XPress-Carbon Environmental Product Declaration |
download | |
SDS VSH XPress Carbon link to sheet |
download | |
VSH XPress Carbon LPCB certifications |
download | |
VSH XPress Carbon Lloyds Register certifications |
download | |
VSH XPress Carbon SBSC certifications |
download | |
VSH XPress QB certifications |
download | |
VSH _XPress_VdS certifications |
download | |
VSH_XPress_Carbon-SPF certifications |
download | |
VSH_XPress_Galvanized_RINA certifications |
download | |
VSH_XPress_carbon_RISE certifications |
download | |
ATG3056_XPress_Carbon certifications |
download | |

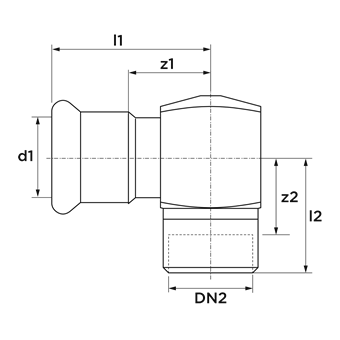

 Diagram diagram |
png | download |
VSH XPress Carbon&Stainless Bureau Veritas certifications |
download | |
VSH XPress installation instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Steel |
| Material quality connection 1 | St 34.2 (1.0034) |
| Surface protection connection 1 | Galvanic/electrolytic zinc plated |
| Material connection 2 | Steel |
| Material quality connection 2 | St 34.2 (1.0034) |
| Surface protection connection 2 | Galvanic/electrolytic zinc plated |
| Shape | Bend |
| Model | 1-part |
| Bend angle | 90° |
| Reducing | Yes |
| Eccentric | No |
| System specific | Yes |
| Wall thickness, connection 1 | 1.5mm |
| Connection 1 | Press sleeve |
| Contour code connection 1 | M |
| Nominal diameter connection 2 | 1/2 inch (15) |
| Outer pipe diameter connection 2 | 21.3mm |
| Outer pipe diameter connection 2 (imperial) | 0.84" |
| Connection 2 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Main colour fitting | Grey |
| Flange compression class | PN 16 |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | Yes |
| High tensile strength | Yes |
| Medium temperature (continuous) | -35°C - 135°C |
| Medium temperature (continuous) (imperial) | -31°F - 275°F |
| Max. operating pressure at 20 °C | 16bar |
| Max. operating pressure at 20 °C (imperial) | 232.06psi |
| With thermal insulation | No |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | Yes |
| ULC quality mark | No |
| UL quality mark | No |
| DIN-CERTCO certificate | No |
| VdS quality mark | Yes |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Type approval according to BBR/EKS | No |
| item number | description | |
|---|---|---|
 |
6119421 | VSH XPress Carbon+Stainless O-ring FPM LBP 22 |
 |
6222238 | VSH XPress Carbon+Stainless O-ring EPDM LBP 22 |
 |
6212646 | VSH XPress C+S insert depth marker 12-108 |
 |
6211898 | Deburrer for carbon and stainless steel tube 12-54 |
|
6222249 | VSH XPress Carbon+Stainless O-ring EPDM LBP 28 |
|
6119432 | VSH XPress Carbon+Stainless O-ring FPM LBP 28 |
|
6222251 | VSH XPress Carbon+Stainless O-ring EPDM LBP 35 |
|
6119443 | VSH XPress Carbon+Stainless O-ring FPM LBP 35 |
 |
6209951 | VSH SudoXPress Carbon galvanized tube 22x1.5 (l=6m) small bundle |
|
6209962 | VSH SudoXPress Carbon galvanized tube 28x1.5 l=6m) small bundle |
|
6203923 | VSH SudoXPress Carbon galvanized tube 35x1.5 (l=6m) small bundle |
|
6206299 | VSH SudoXPress Carbon galvanized tube 22x1.5 (l=3m) |
|
6206301 | VSH SudoXPress Carbon galvanized tube 28x1.5 (l=3m) |
|
6206310 | VSH SudoXPress Carbon galvanized tube 35x1.5 (l=3m) |
|
6205177 | VSH SudoXPress Carbon galvanized tube 22x1.5 (l=6m) |
|
6205188 | VSH SudoXPress Carbon galvanized tube 28x1.5 (l=6m) |
|
6205199 | VSH SudoXPress Carbon galvanized tube 35x1.5 (l=6m) |
 |
6204704 | VSH SudoXPress Carbon galvanized tube+PP coating 22x1.5 |
|
6204715 | VSH SudoXPress Carbon galvanized tube+PP coating 28x1.5 |
|
6204726 | VSH SudoXPress Carbon galvanized tube+PP coating 35x1.5 |
|
6340721 | VSH SudoXPress Carbon galvanized tube+PP 22x1.5 small bundle |
|
6340730 | VSH SudoXPress Carbon galvanized tube+PP 28x1.5 small bundle |
|
6340741 | VSH SudoXPress Carbon galvanized tube+PP 35x1.5 small bundle |
 |
6241114 | VSH XPress Carbon Sendzimir galvanized tube 22x1.5 |
|
6241125 | VSH XPress Carbon Sendzimir galvanized tube 28x1.5 |
|
6241136 | VSH XPress Carbon Sendzimir galvanized tube 35x1.5 |
|
6340004 | VSH XPress Carbon Sendzimir galvanized tube 22x1.5 small bundle |
|
6340015 | VSH XPress Carbon Sendzimir galvanized tube 28x1.5 small bundle |
|
6340026 | VSH XPress Carbon Sendzimir galvanized tube 35x1.5 small bundle |
| item number | description | ||
|---|---|---|---|
|
6222238 | VSH XPress Carbon+Stainless O-ring EPDM LBP 22 | 1 |
|
6222249 | VSH XPress Carbon+Stainless O-ring EPDM LBP 28 | 1 |
|
6222251 | VSH XPress Carbon+Stainless O-ring EPDM LBP 35 | 1 |
