Broen Ballofix radiator drain with hose connector (male thread x hose connector)

group: B3838

The B3838 Broen Ballofix mini ball valves are high quality, compact ball valves with high quality finishing. The design and materials used, guarantee smooth operation, even after several years of use. Broen Ballofix ball valves can be used without or with operating handles. The handles are available in various colours so that colour coding is possible. Due to the wide range, an optimal version is available for every application.
  • Broen Ballofix mini ball valves can be operated using a screwdriver or Ballofix handle
  • we recommend opening and closing Broen Ballofix ball valves twice a year & nbsp; to ensure optimal operation
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

no approvals available

item number

size

DN1

l1

DN2

l2

z2

angle

item number

6001985

size

G1/2"x1/8 (DN10R) Ni

DN1

1/2" (DN15)

l1

22

DN2

DN6

l2

25

z2

17

angle

90

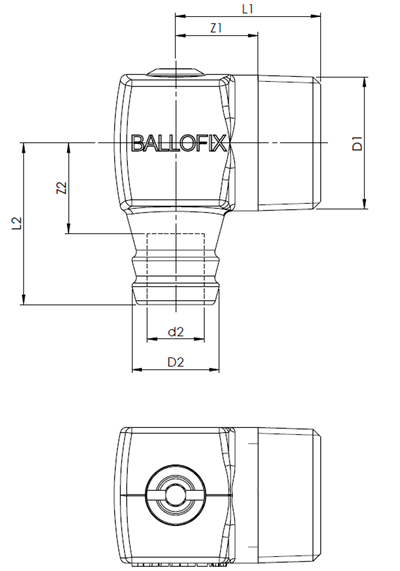

technical drawing for product

characteristics

color

silver

materials

brass (CW614N)

finishing

nickel-plated

shape

Elbow (90º)

connection type

G - male thread gas cylindrical (BSPP), hose connector

pressure rating (PN)

PN 10

sealing

EPDM

Bore (Full bore)

5 mm (No)

general

product group

valves (ball valves)

ETIM class

EC010071 Fill and drain valve

HS code

84818039

brand

Broen

series

Ballofix

type

B3838

UNSPS

40141607

SCIP

e78c0723-c6e6-479c-bcc1-e395a5461292

technical

max operating pressure liquid

10 bar

min. medium temperature

-20 °C

max medium temperature

120 °C

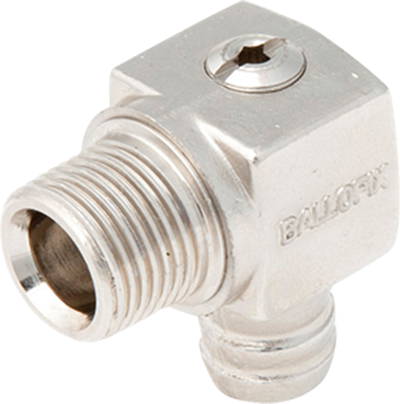

image for B3838

image | png

B3838

image for Diagram

diagram | png

Diagram

label

value

label

ETIM class

label

Housing material

value

Brass

label

Surface protection

value

Nickel-plated

label

Nominal diameter connection 1

value

1/2 inch (15)

label

Connection 1

value

External thread cylindrical BSPP-G (ISO 228-1)

label

Nominal diameter connection 2

value

Other

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Max. medium temperature (continuous)

value

120°C

label

Max. medium temperature (continuous) (imperial)

value

248°F

label

Operation

value

Screw slot

label

With pressure gauge

value

No

label

Length

value

26mm

label

Suitable for heating

value

Yes

label

Suitable for potable water

value

No

label

Suitable for solar heating

value

No
