Broen Ballofix mini ball valve no handle (2 x female thread)

Broen Ballofix mini ball valve no handle (2 x female thread)

B3800

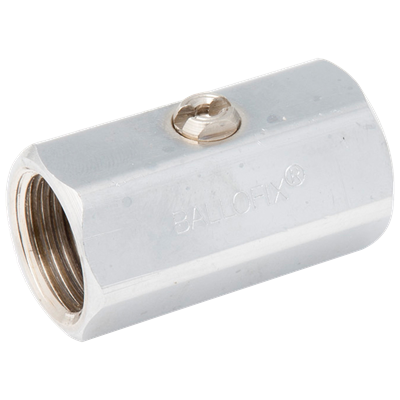

The B3800 Broen Ballofix mini ball valves are high quality, compact ball valves with high quality finishing. The design and materials used, guarantee smooth operation, even after several years of use. Broen Ballofix ball valves can be used without or with operating handles. The handles are available in various colours so that colour coding is possible. Due to the wide range, an optimal version is available for every application.

  • Broen Ballofix mini ball valves can be operated using a screwdriver or Ballofix handle
  • we recommend opening and closing Broen Ballofix ball valves twice a year & nbsp; to ensure optimal operation

applications

potable water heating cooling compressed air

solutions

building installations industry

approvals

ETA GDV KIWA SINTEF SITAC STF WRAS
item number size weight dimensions packaging gtin
0400018 G1/4" (DN8R) Cr 0.09 kg 40x24x24 mm carton (10 pce) 05708537784770
0400000 G1/4" (DN8R) 0.09 kg 40x30x30 mm carton (10 pce) 05708537784756
6000214 G3/8" (DN10R) Cr 0.09 kg 46x24x24 mm carton (10 pce) 05708537775570
6004207 G3/8" (DN10R) 0.09 kg 46x24x24 mm carton (10 pce) 05708537775495
6000258 G1/2 Cr (DN15R) 0.12 kg 47x29x30 mm carton (10 pce) 05708537775587
6004218 G1/2" (DN15R) 0.12 kg 47x29x30 mm carton (10 pce) 05708537775518
6000271 G3/4" (DN15R) Cr 0.24 kg 56x36x37 mm carton (10 pce) 05708537786309
6004229 G3/4" (DN15R) 0.24 kg 56x36x37 mm carton (10 pce) 05708537775532
6004350 G1" (DN20R) 0.52 kg 75x46x46 mm carton (5 pce) 05708537786507
item number size DN1 l1 z1 DN2 l2 z2 slw0 a
0400018 G1/4" (DN8R) Cr 1/4" (DN8) 20 9 1/4" (DN8) 25 14 21 90
0400000 G1/4" (DN8R) 1/4" (DN8) 20 9 1/4" (DN8) 25 14 90
6000214 G3/8" (DN10R) Cr 3/8" (DN10) 21 10 3/8" (DN10) 25 14 21
6004207 G3/8" (DN10R) 3/8" (DN10) 21 10 3/8" (DN10) 25 14 21 90
6000258 G1/2 Cr (DN15R) 1/2" (DN15) 24 12 1/2" (DN15) 23 11 25 90
6004218 G1/2" (DN15R) 1/2" (DN15) 24 12 1/2" (DN15) 23 11 25 90
6000271 G3/4" (DN15R) Cr 3/4" (DN20) 29 15 3/4" (DN20) 27 13 32 90
6004229 G3/4" (DN15R) 3/4" (DN20) 29 15 3/4" (DN20) 27 13 32 90
6004350 G1" (DN20R) 1" (DN25) 36 17 1" (DN25) 39 20 40 90
see above for the diagram related to these dimensions
color brass, chrome
materials brass (CW625N (DZR))
finishing chromed, none
manufacturer BROEN
shape straight
connection type G - female thread gas cylindrical (BSPP)
pressure rating (PN) PN 10
sealing EPDM
product group valves (ball valves)
ETIM class EC011343 Ball valve
HS code 84818081
brand Broen
series Ballofix
type B3800
UNSPS 40141607
SCIP e78c0723-c6e6-479c-bcc1-e395a5461292
label value
ETIM class EC011343 Ball valve
Material ball Brass
Material spindle Brass
Material primary spindle seal Ethylene-propylene diene monomer rubber (EPDM)
Connection 1 Internal thread cylindrical BSPP-G (ISO 228-1)
With coupling connection 1 No
Connection 2 Internal thread cylindrical BSPP-G (ISO 228-1)
With coupling connection 2 No
Sealing Ethylene-propylene diene monomer rubber (EPDM)
Article compression class PN 10
Flange compression class PN 10
With drain valve No
With drain possibility (connection) No
With non-return valve No
With filter No
With thermometer No
Model Straight
With insulation shell No
FM quality mark No
UL quality mark No
ULC quality mark No
LPCB quality mark No
Medium temperature (continuous) -20°C - 120°C
Medium temperature (continuous) (imperial) -4°F - 248°F
Medically clean No
Grease-free No
Operation Screw slot
Housing construction 1-part
Full bore No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
