8172.23
applications
solutions
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 0047199 | G1/2" (DN15) | 0.25 kg | 81x47x47 mm | carton (1 pce) | 04018422244410 |
| color | chrome |
|---|---|
| materials | brass |
| finishing | chromed |
| manufacturer | Seppelfricke |
| shape | straight |
| connection type | G - male thread gas cylindrical (BSPP) |
| pressure rating (PN) | PN 10 |
| sealing | PTFE |
| product group | safety valves (safety valve, aerators) |
|---|---|
| ETIM class | EC010131 Aerator (pressureless system) |
| HS code | 84818099 |
| brand | Seppelfricke |
| series | SEPP Safe |
| type | 8172.23 |

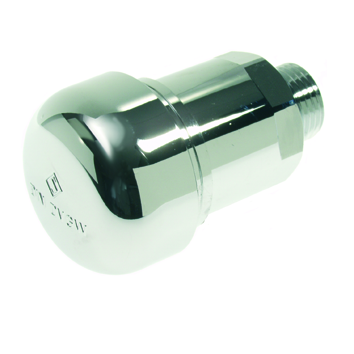

 S8172 image |
png | download |
| label | value |
|---|---|
| ETIM class | EC010131 Aerator (pressureless system) |
| Nominal diameter | 1/2 inch (15) |
| Outer pipe diameter | 21.3mm |
| Outer pipe diameter (imperial) | 0.84" |
| Connection 1 | External thread cylindrical BSPP-G (ISO 228-1) |
| Max. operating pressure at 20 °C | 10bar |
| Max. operating pressure at 20 °C (imperial) | 145.04psi |
| Max. medium temperature (continuous) | 80°C |
| Max. medium temperature (continuous) (imperial) | 176°F |
| Surface protection | Chromium-plated |
| Length of connection 1 | 81mm |
| Length of connection 1 (imperial) | 3.19" |
| Height | 47mm |
